Keepalived 架构和安装

Keepalived 介绍

vrrp 协议的软件实现，原生设计目的为了高可用 ipvs服务

keepalived 是高可用集群的通用无状态应用解决方案

官网：http://keepalived.org/

功能：

  • 基于vrrp协议完成地址流动
  • 为vip地址所在的节点生成ipvs规则(在配置文件中预先定义)
  • 为ipvs集群的各RS做健康状态检测
  • 基于脚本调用接口完成脚本中定义的功能，进而影响集群事务，以此支持nginx、haproxy等服务

Keepalived 架构

官方文档：

1
2
https://keepalived.org/doc/
http://keepalived.org/documentation.html

2

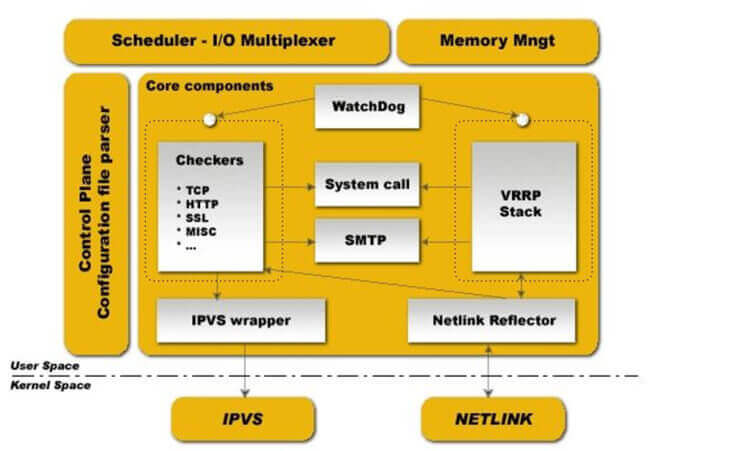

  • 用户空间核心组件：

    • vrrp stack：VIP消息通告
    • checkers：监测 Real Server
    • system call：实现 vrrp 协议状态转换时调用脚本的功能
    • SMTP：邮件组件
    • IPVS wrapper：生成 IPVS 规则
    • Netlink Reflector：网络接口
    • WatchDog：监控进程

  • 控制组件：提供keepalived.conf 的解析器，完成Keepalived配置

  • IO复用器：针对网络目的而优化的自己的线程抽象

  • 内存管理组件：为某些通用的内存管理功能（例如分配，重新分配，发布等）提供访问权限

Keepalived进程树

1
2
3
Keepalived <-- Parent process monitoring children
\_ Keepalived <-- VRRP child
\_ Keepalived <-- Healthchecking child

Keepalived 环境准备

3

  • 各节点时间必须同步：ntp, chrony
  • 关闭防火墙及SELinux
  • 各节点之间可通过主机名互相通信：非必须
  • 建议使用/etc/hosts文件实现：非必须
  • 各节点之间的root用户可以基于密钥认证的ssh服务完成互相通信：非必须

Keepalived 相关文件

  • 软件包名：keepalived
  • 主程序文件：/usr/sbin/keepalived
  • 主配置文件：/etc/keepalived/keepalived.conf
  • 配置文件示例：/usr/share/doc/keepalived/
  • Unit File：/lib/systemd/system/keepalived.service
  • Unit File的环境配置文件：
    • /etc/sysconfig/keepalived CentOS
    • /etc/default/keepalived Ubuntu

注意：CentOS 7 上有 bug，可能有下面情况出现

1
2
systemctl restart keepalived #新配置可能无法生效
systemctl stop keepalived;systemctl start keepalived #无法停止进程，需要 kill 停止

Keepalived 安装

包安装

1
2
3
4
5
#CentOS
[root@centos ~]# yum -y install keepalived

#ubuntu
[root@ubuntu1804 ~]# apt update;apt -y install keepalived

CentOS 安装 keepalived

1
2
3
4
5
6
7
8
9
10
11
[root@centos8 ~]# dnf -y install keepalived
[root@centos8 ~]# dnf info keepalived

[root@centos8 ~]# systemctl start keepalived.service
[root@centos8 ~]# ps auxf |grep keepalived

[root@centos8 ~]# pstree -p
......
           ├─keepalived(12835)─┬─keepalived(12836)
           │                   └─keepalived(12837)
......

Ubuntu 安装 keepalived

范例：Ubuntu22.04

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[root@ubuntu2204 ~]# apt list keepalived
[root@ubuntu2204 ~]# apt update;apt -y install keepalived


#默认缺少配置，服务无法启动，提示/etc/keepalived/keepalived.conf 不存在
[root@ubuntu2204 ~]# systemctl status keepalived.service
○ keepalived.service - Keepalive Daemon (LVS and VRRP)
     Loaded: loaded (/lib/systemd/system/keepalived.service; enabled; vendor preset: enabled)
     Active: inactive (dead)
 Condition: start condition failed at Thu 2023-01-12 15:28:42 CST; 4s ago
             └─ ConditionFileNotEmpty=/etc/keepalived/keepalived.conf was not met
1月 12 15:26:47 ubuntu2204.wang.org systemd[1]: Condition check resulted in
Keepalive Daemon (LVS and VRRP) being skipped.
1月 12 15:28:42 ubuntu2204.wang.org systemd[1]: Condition check resulted in
Keepalive Daemon (LVS and VRRP) being skipped.

#利用模板生成生配置文件
[root@ubuntu2204 ~]# cp /usr/share/doc/keepalived/samples/keepalived.conf.sample /etc/keepalived/keepalived.conf
[root@ubuntu2204 ~]# systemctl start keepalived.service
[root@ubuntu2204 ~]# systemctl status keepalived.service

编译安装

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
#Ubuntu20.04安装相关包
[root@ubuntu2004 ~]# apt update
[root@ubuntu2004 ~]# apt -y install make gcc ipvsadm build-essential pkg-config automake autoconf libipset-dev \
   libnl-3-dev libnl-genl-3-dev libssl-dev libxtables-dev libip4tc-dev libip6tc-dev libipset-dev libmagic-dev \
   libsnmp-dev libglib2.0-dev libpcre2-dev libnftnl-dev libmnl-dev libsystemd-dev

#Ubuntu18.04安装相关包
[root@ubuntu1804 ~]# apt update
[root@ubuntu1804 ~]# apt -y install gcc curl openssl libssl-dev libpopt-dev daemon build-essential


#红帽系统安装相关包
[root@centos7 ~]# yum install gcc curl openssl-devel libnl3-devel net-snmp-devel

#下载解压
[root@centos7 ~]# wget https://keepalived.org/software/keepalived-2.0.20.tar.gz
[root@centos7 ~]# tar xvf keepalived-2.0.20.tar.gz -C /usr/local/src
[root@centos7 ~]# cd /usr/local/src/keepalived-2.0.20/


#选项--disable-fwmark 可用于禁用iptables规则,可防止VIP无法访问,无此选项默认会启用iptables规则


[root@centos7 keepalived-2.0.20]# ./configure --prefix=/usr/local/keepalived #--disable-fwmark

[root@centos7 keepalived-2.0.20]# make && make install
[root@centos7 keepalived-2.0.20]# cd
[root@centos7 ~]# /usr/local/keepalived/sbin/keepalived -v
Keepalived v2.0.20 (01/22,2020)

#默认会自动生成unit文件
[root@centos7 ~]# cp ./keepalived/keepalived.service /lib/systemd/system/
[root@centos7 ~]# cat /usr/lib/systemd/system/keepalived.service
[Unit]
Description=LVS and VRRP High Availability Monitor
After=network-online.target syslog.target
Wants=network-online.target

[Service]
Type=forking
PIDFile=/run/keepalived.pid
KillMode=process
EnvironmentFile=-/usr/local/keepalived/etc/sysconfig/keepalived
ExecStart=/usr/local/keepalived/sbin/keepalived $KEEPALIVED_OPTIONS
ExecReload=/bin/kill -HUP $MAINPID

[Install]
WantedBy=multi-user.target


[root@centos7 ~]# cat /usr/local/keepalived/etc/sysconfig/keepalived
# Options for keepalived. See `keepalived --help' output and keepalived(8) and
# keepalived.conf(5) man pages for a list of all options. Here are the most
# common ones :
#
# --vrrp               -P   Only run with VRRP subsystem.
# --check             -C   Only run with Health-checker subsystem.
# --dont-release-vrrp -V   Dont remove VRRP VIPs & VROUTEs on daemon stop.
# --dont-release-ipvs -I   Dont remove IPVS topology on daemon stop.
# --dump-conf         -d   Dump the configuration data.
# --log-detail         -D   Detailed log messages.
# --log-facility       -S   0-7 Set local syslog facility (default=LOG_DAEMON)
#
KEEPALIVED_OPTIONS="-D"


#默认无法启动
[root@centos7 ~]# systemctl start keepalived.service
Job for keepalived.service failed because the control process exited with error
code. See "systemctl status keepalived.service" and "journalctl -xe" for
details.

#查看日志，可以看到是因为缺少配置文件导致无法启动
[root@centos7 ~]# journalctl -xe
-- Subject: Unit keepalived.service has begun start-up
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit keepalived.service has begun starting up.
Mar 29 00:38:17 centos7.wang.org Keepalived[1123]: Starting Keepalived v2.0.20
(01/22,2020)
Mar 29 00:38:17 centos7.wang.org Keepalived[1123]: Running on Linux 3.10.0-
1062.el7.x86_64 #1 SMP Wed Aug 7
Mar 29 00:38:17 centos7.wang.org Keepalived[1123]: Command line:
'/usr/local/keepalived/sbin/keepalived' '-D
Mar 29 00:38:17 centos7.wang.org Keepalived[1123]: Unable to find configuration
file /etc/keepalived/keepali   #默认配置文件路径
Mar 29 00:38:17 centos7.wang.org Keepalived[1123]: Stopped Keepalived v2.0.20
(01/22,2020)
Mar 29 00:38:17 centos7.wang.org systemd[1]: keepalived.service: control process
exited, code=exited status=
Mar 29 00:38:17 centos7.wang.org systemd[1]: Failed to start LVS and VRRP High
Availability Monitor.
-- Subject: Unit keepalived.service has failed
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit keepalived.service has failed.
--
-- The result is failed.
Mar 29 00:38:17 centos7.wang.org systemd[1]: Unit keepalived.service entered
failed state.
Mar 29 00:38:17 centos7.wang.org systemd[1]: keepalived.service failed.
Mar 29 00:38:17 centos7.wang.org polkitd[565]: Unregistered Authentication Agent
for unix-process:1117:11546


#创建配置文件
[root@centos7 ~]# mkdir /etc/keepalived
[root@centos7 ~]# cp /usr/local/keepalived/etc/keepalived/keepalived.conf.sample /etc/keepalived/keepalived.conf

#再次启动成功
[root@centos7 ~]# systemctl enable --now keepalived.service
Created symlink from /etc/systemd/system/multi-user.target.wants/keepalived.service to
/usr/lib/systemd/system/keepalived.service.

[root@centos7 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default qlen 1000
   link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
   inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
   inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP
group default qlen 1000
   link/ether 00:0c:29:32:80:38 brd ff:ff:ff:ff:ff:ff
   inet 10.0.0.7/24 brd 10.0.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
   inet 192.168.200.16/32 scope global eth0
       valid_lft forever preferred_lft forever
   inet 192.168.200.17/32 scope global eth0
       valid_lft forever preferred_lft forever
   inet 192.168.200.18/32 scope global eth0
       valid_lft forever preferred_lft forever
   inet6 fe80::20c:29ff:fe32:8038/64 scope link
       valid_lft forever preferred_lft forever

[root@centos7 ~]# hostname -I
10.0.0.7 192.168.200.16 192.168.200.17 192.168.200.18

[root@centos7 ~]# ping 192.168.200.16
PING 192.168.200.16 (192.168.200.16) 56(84) bytes of data.
ping: sendmsg: Operation not permitted
ping: sendmsg: Operation not permitted
^C
--- 192.168.200.16 ping statistics ---
2 packets transmitted, 0 received, 100% packet loss, time 1000ms

#默认生成iptables规则,无法访问VIP,编译时可以加--disable-fwmark禁用生成iptables规则
[root@centos7 ~]# iptables -vnL
Chain INPUT (policy ACCEPT 860 packets, 46129 bytes)
 pkts bytes target     prot opt in     out     source               destination
    0     0 DROP       all  -- *     *       0.0.0.0/0
192.168.200.18
    0     0 DROP       all  -- *     *       0.0.0.0/0
192.168.200.17
    0     0 DROP       all  -- *     *       0.0.0.0/0
192.168.200.16

Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination

Chain OUTPUT (policy ACCEPT 1737 packets, 1188K bytes)
 pkts bytes target     prot opt in     out     source               destination

    4   336 DROP       all  -- *     *       192.168.200.18       0.0.0.0/0
    0     0 DROP       all  -- *     *       192.168.200.17       0.0.0.0/0
    0     0 DROP       all  -- *     *       192.168.200.16       0.0.0.0/0

[root@centos7 ~]# vim /etc/keepalived/keepalived.conf
#注释下面一行
#vrrp_strict

#重启动不生效，有bug
[root@centos7 ~]# systemctl restart keepalived.service
[root@centos7 ~]# ping 192.168.200.16
PING 192.168.200.16 (192.168.200.16) 56(84) bytes of data.
ping: sendmsg: Operation not permitted
ping: sendmsg: Operation not permitted
^C
--- 192.168.200.16 ping statistics ---
2 packets transmitted, 0 received, 100% packet loss, time 999ms

#无法关闭进程
[root@centos7 ~]# systemctl stop keepalived.service
[root@centos7 ~]# ps aux|grep keepalived
root       1383  0.0  0.1  69672  1020 ?       Ss   00:57   0:00 /usr/local/keepalived/sbin/keepalived -D
root       1384  0.0  0.2  69804  2308 ?       S    00:57   0:00 /usr/local/keepalived/sbin/keepalived -D
root       1385  0.0  0.1  69672  1308 ?       S    00:57   0:00 /usr/local/keepalived/sbin/keepalived -D
root       1392  0.0  0.0 112712   964 pts/0   R+   00:59   0:00 grep --color=auto keepalived


[root@centos7 ~]# killall keepalived
[root@centos7 ~]# systemctl start keepalived.service
[root@centos7 ~]# ping 192.168.200.16
PING 192.168.200.16 (192.168.200.16) 56(84) bytes of data.
64 bytes from 192.168.200.16: icmp_seq=1 ttl=64 time=0.093 ms
^C
--- 192.168.200.16 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.093/0.093/0.093/0.000 ms

KeepAlived 配置说明

配置文件组成部分

配置文件

1
/etc/keepalived/keepalived.conf

配置文件组成

  • GLOBAL CONFIGURATION

    Global definitions：定义邮件配置，route_id，vrrp配置，多播地址等

  • VRRP CONFIGURATION

    VRRP instance(s)：定义每个vrrp虚拟路由器

  • LVS CONFIGURATION

    Virtual server group(s)

    Virtual server(s)：LVS集群的VS和RS

配置语法说明

帮助

1
man keepalived.conf

全局配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
#/etc/keepalived/keepalived.conf
global_defs {
    notification_email {
    	root@localhost #keepalived 发生故障切换时邮件发送的目标邮箱，可以按行区分写多个
    	root@wangxiaochun.com
     	29308620@qq.com
    }
    notification_email_from keepalived@localhost  #发邮件的地址
    smtp_server 127.0.0.1     #邮件服务器地址
    smtp_connect_timeout 30   #邮件服务器连接timeout
    router_id ka1.example.com #每个keepalived主机唯一标识，建议使用当前主机名，如果多节点重名可能会影响切换脚本执行
    vrrp_skip_check_adv_addr  #对所有通告报文都检查，会比较消耗性能，启用此配置后，如果收到的通告报文和上一个报文是同一个路由器，则跳过检查，默认值为全检查
    vrrp_strict #严格遵守VRRP协议,启用此项后以下状况将无法启动服务:1.无VIP地址 2.配置了单播邻居 3.在VRRP版本2中有IPv6地址，开启动此项并且没有配置vrrp_iptables时会自动开启iptables防火墙规则，默认导致VIP无法访问,建议不加此项配置
    vrrp_garp_interval 0 #gratuitous ARP messages 报文发送延迟，0表示不延迟
    vrrp_gna_interval 0  #unsolicited NA messages （不请自来）消息发送延迟
    vrrp_mcast_group4 224.0.0.18 #指定组播IP地址范围：224.0.0.0到239.255.255.255,默认值：224.0.0.18
    vrrp_iptables   #此项和vrrp_strict同时开启时，则不会添加防火墙规则,如果无配置vrrp_strict项,则无需启用此项配置，注意：新版加此项仍有iptables规则
}

配置虚拟路由器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
vrrp_instance <STRING> { #<String>为vrrp的实例名,一般为业务名称
	配置参数
	......
}

#配置参数：
state MASTER|BACKUP		#当前节点在此虚拟路由器上的初始状态，状态为MASTER或者BACKUP，当priority相同时，Master节点优先获取VIP
interface IFACE_NAME 	#绑定为当前VRRP虚拟路由器使用的物理接口，如：eth0,bond0,br0,可以和VIP不在一个网卡

virtual_router_id VRID	 #每个虚拟路由器唯一标识，范围：0-255，每个虚拟路由器此值必须唯一，否则服务无法启动，同属一个虚拟路由器的多个keepalived节点必须相同,务必要确认在同一网络中此值必须唯一
priority 100             #当前物理节点在此虚拟路由器的优先级，范围：1-254，每个keepalived主机节点此值不同
advert_int 1             #vrrp通告的时间间隔，默认1s
authentication {         #认证机制
 	auth_type AH|PASS    #AH为IPSEC认证(不推荐),PASS为简单密码(建议使用)
	auth_pass <PASSWORD> #预共享密钥，仅前8位有效，同一个虚拟路由器的多个keepalived节点必须一样
}

virtual_ipaddress { #虚拟IP,生产环境可能指定几十上百个VIP地址
	<IPADDR>/<MASK> brd <IPADDR> dev <STRING> scope <SCOPE> label <LABEL>
 	192.168.200.100 #指定VIP，不指定网卡，默认为eth0,注意：不指定/prefix,默认为/32
 	192.168.200.101/24 dev eth1   #指定VIP的网卡，建议和interface指令指定的网卡不在一个网卡
     192.168.200.102/24 dev eth2 label eth2:1 #指定VIP的网卡label
}

track_interface { #配置监控网络接口，一旦出现故障，则转为FAULT状态实现地址转移
	eth0
	eth1
	…
}

范例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
[root@centos7 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
   vrrp_strict #开启限制，会自动生效防火墙设置，导致无访问VIP
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}
vrrp_instance VI_1 {
   state MASTER
   interface eth0
   virtual_router_id 80 #修改此行
   priority 100
   advert_int 1
   authentication {
       auth_type PASS
       auth_pass 1111
   }
   virtual_ipaddress {
        192.168.200.16
        192.168.200.17
        192.168.200.18
   }
}


[root@centos7 ~]# systemctl start keepalived.service
[root@centos7 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default qlen 1000
   link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
   inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
   inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP
group default qlen 1000
   link/ether 00:0c:29:33:b4:1a brd ff:ff:ff:ff:ff:ff
   inet 10.0.0.17/24 brd 10.0.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
   inet 192.168.200.16/32 scope global eth0
       valid_lft forever preferred_lft forever
   inet 192.168.200.17/32 scope global eth0
       valid_lft forever preferred_lft forever
   inet 192.168.200.18/32 scope global eth0
       valid_lft forever preferred_lft forever
   inet6 fe80::20c:29ff:fe33:b41a/64 scope link
       valid_lft forever preferred_lft forever

[root@centos7 ~]# ping 192.168.200.16
PING 192.168.200.16 (192.168.200.16) 56(84) bytes of data.
^C
--- 192.168.200.16 ping statistics ---
6 packets transmitted, 0 received, 100% packet loss, time 5002ms

# 如果是CentOS 8 ，会显示以下warning
[root@centos8 ~]#iptables -vnL
Chain INPUT (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination

Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination

Chain OUTPUT (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination

# Warning: iptables-legacy tables present, use iptables-legacy to see them
#无法访问VIP
[root@centos8 ~]# ping 192.168.200.16
PING 192.168.200.16 (192.168.200.16) 56(84) bytes of data.
^C
--- 192.168.200.16 ping statistics ---
6 packets transmitted, 0 received, 100% packet loss, time 143ms

启用 Keepalived 日志功能

范例：包安装实现日志功能,注意: 编译安装可能有问题

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@ka1 ~]# vim /etc/sysconfig/keepalived
KEEPALIVED_OPTIONS="-D -S 6"

[root@ka1 ~]# vim /etc/rsyslog.conf
local6.*             /var/log/keepalived.log

[root@ka1 ~]# systemctl restart keepalived.service rsyslog.service
[root@ka1 ~]# tail -f /var/log/keepalived.log
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: (VI_1) Sending/queueing gratuitous ARPs on eth0 for 10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for 10.0.0.10

实现 Keepalived 独立子配置文件

当生产环境复杂时， /etc/keepalived/keepalived.conf 文件中保存所有集群的配置会导致内容过多，不易管理

可以将不同集群的配置，比如：不同集群的VIP配置放在独立的子配置文件中

利用include 指令可以实现包含子配置文件

格式:

1
include /path/file

范例:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[root@ka1-centos8 ~]# mkdir /etc/keepalived/conf.d/
[root@ka1-centos8 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
   notification_email {
        29308620@qq.com
   }
   notification_email_from 29308620@qq.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id ka1.wang.org
   vrrp_skip_check_adv_addr
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}
include /etc/keepalived/conf.d/*.conf   #将VRRP相关配置放在子配置文件中

[root@ka1-centos8 ~]# vim /etc/keepalived/conf.d/cluster1.conf

Keepalived 实现 VRRP

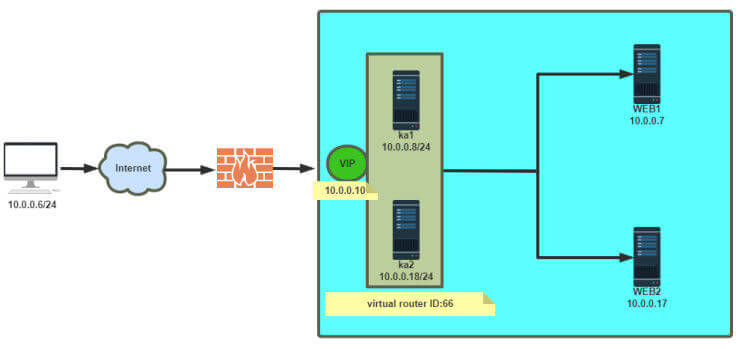

实现master/slave的 Keepalived 单主架构

MASTER配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@ka1-centos8 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
	notification_email {
		root@localhost #keepalived 发生故障切换时邮件发送的对象，可以按行区分写多个
	}
	notification_email_from keepalived@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.example.com
	vrrp_skip_check_adv_addr  #所有报文都检查比较消耗性能，此配置为如果收到的报文和上一个报文是同一个路由器则跳过检查报文中的源地址
    #vrrp_strict #严格遵守VRRP协议,禁止状况:1.无VIP地址,2.配置了单播邻居,3.在VRRP版本2中有IPv6地址
	vrrp_garp_interval 0     #ARP报文发送延迟
	vrrp_gna_interval 0      #消息发送延迟
	vrrp_mcast_group4 224.0.0.18  #默认组播IP地址，可指定组播范围：224.0.0.0到239.255.255.255
}

vrrp_instance VI_1 {
	state MASTER            #在另一个节点上为BACKUP,如果当priority 相同时,Master节点优先获取VIP
	interface eth0
	virtual_router_id 66    #每个虚拟路由器必须唯一，同属一个虚拟路由器的多个keepalived节点必须相同
	priority 100            #在另一个结点上为80
	advert_int 1
	authentication {
  		auth_type PASS      #预共享密钥认证，同一个虚拟路由器的keepalived节点必须一样
  		auth_pass 12345678
 }

	virtual_ipaddress {
 		10.0.0.10 dev eth0 label eth0:0
	}
}

BACKUP配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
#配置文件和master基本一致，只需修改三行
[root@ka2-centos8 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from keepalived@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka2.example.com         #修改此行
	vrrp_skip_check_adv_addr
	#vrrp_strict
	vrrp_garp_interval 0
	vrrp_gna_interval 0
	vrrp_mcast_group4 224.0.0.18
}

vrrp_instance VI_1 {
	state BACKUP #修改此行
	interface eth0
	virtual_router_id 66
	priority 80 #修改此行
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 12345678
	}
	virtual_ipaddress {
    	10.0.0.10 dev eth0 label eth0:0
	}
}

抓包观察

1
tcpdump -i eth0 -nn host 224.0.0.18

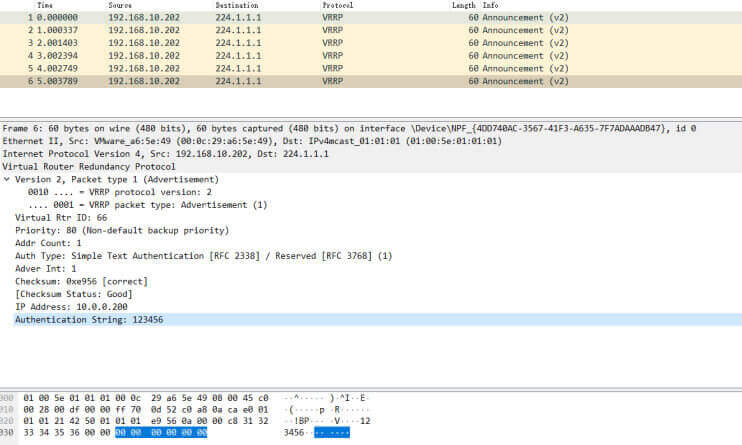

VRRP 协议包

6

脑裂

主备节点同时拥有同一个VIP，此时为脑裂理象

注意：脑裂现象原因

  • 心跳线故障： 通过修改网卡的工作模式实现模拟，断开网卡方式无法模拟
  • 防火墙错误配置：在从节点服务器执行iptables -A INPUT -s 主服务心跳网卡IP -j DROP 进行模拟
  • Keepalived 配置错误：interface错误，virtual_router_id不一致，密码不一致，优先级相同

范例: 发现脑裂

1
2
3
4
5
6
[root@centos7 ~]# arping -I eth1 -c1 10.0.0.100
ARPING 10.0.0.100 from 192.168.10.130 eth1
Unicast reply from 10.0.0.100 [00:0C:29:7E:DA:E6]  0.801ms
Unicast reply from 10.0.0.100 [00:0C:29:97:AF:4F]  0.814ms
Sent 1 probes (1 broadcast(s))
Received 2 response(s)

抢占模式和非抢占模式

非抢占模式 nopreempt

默认为抢占模式 preempt，即当高优先级的主机恢复在线后，会抢占低先级的主机的master角色，造成网络抖动，建议设置为非抢占模式 nopreempt ，即高优先级主机恢复后，并不会抢占低优先级主机的 master 角色

注意: 非抢占模式下,如果原主机down机, VIP迁移至的新主机, 后续新主机也发生down（（keepalived 服务down））时,VIP还会迁移回修复好的原主机

但如果新主机的服务down掉（keepalived服务正常），原主机也不会接管VIP，仍会由新主机拥有VIP即非抢占式模式，只是适合当主节点宕机，切换到从节点的一次性的高可用性，后续即使当原主节点修复好，仍无法再次起到高用功能

注意：要关闭 VIP抢占，必须将各 Keepalived 服务器 state 配置为 BACKUP

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
#ha1主机配置
vrrp_instance VI_1 {
	state BACKUP          #都为BACKUP
	interface eth0
	virtual_router_id 66
	priority 100          #优先级高
	advert_int 1
	nopreempt             #添加此行，设为nopreempt


#ha2主机配置
vrrp_instance VI_1 {
    state BACKUP          #都为BACKUP
    interface eth0
    virtual_router_id 66
    priority 80           #优先级低
    advert_int 1
    #nopreempt            #注意：如果ka2主机也是非抢占式，会导致ka1即使优先级降低于ka2，VIP也不会切换至ka2

抢占延迟模式 preempt_delay

抢占延迟模式，即优先级高的主机恢复后，不会立即抢回VIP，而是延迟一段时间（默认300s）再抢回 VIP

1
preempt_delay #     #指定抢占延迟时间为#s，默认延迟300s

注意：需要各keepalived服务器state为BACKUP,并且不要启用 vrrp_strict

范例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
#ka1主机配置
vrrp_instance VI_1 {
	state BACKUP     #都为BACKUP
    interface eth0
    virtual_router_id 66
    priority 100 #优先级高
    advert_int 1
    preempt_delay 60    #抢占延迟模式，默认延迟300s


#ka2主机配置
vrrp_instance VI_1 {
    state BACKUP       #都为BACKUP
    interface eth0
    virtual_router_id 66
    priority 80 #优先级低
    advert_int 1

VIP 单播配置

默认keepalived主机之间利用多播相互通告消息，会造成网络拥塞，可以替换成单播，减少网络流量

另外：有些公有云不支持多播，可以利用单播实现

注意：启用 vrrp_strict 时，不能启用单播

1
2
3
4
5
6
#在所有节点vrrp_instance语句块中设置对方主机的IP，建议设置为专用于对应心跳线网络的地址，而非使用业务网络
unicast_src_ip <IPADDR>    #指定发送单播的源IP
unicast_peer {
	<IPADDR>               #指定接收单播的对方目标主机IP
	......
}

范例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
#master 主机配置
[root@ka1-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
    notification_email {
    	acassen@firewall.loc
    	failover@firewall.loc
    	sysadmin@firewall.loc
    }
    notification_email_from Alexandre.Cassen@firewall.loc
    smtp_server 192.168.200.1
    smtp_connect_timeout 30
    router_id ka1.wang.org
    vrrp_skip_check_adv_addr
    #vrrp_strict
    vrrp_garp_interval 0
    vrrp_gna_interval 0
    vrrp_mcast_group4 239.0.0.0  #单播优先于多播,即配置了单播后，多播将失效
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 66
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.10/24 dev eth0 label eth0:1
    }
    unicast_src_ip 10.0.0.8     #本机IP
    unicast_peer{
    	10.0.0.18 #指向对方主机IP
    	10.0.0.28 #如果有多个keepalived,再加其它节点的IP
    }
}

[root@ha1-centos8 ~]# hostname -I
10.0.0.8 10.0.0.10


#slave 主机配置
[root@ka2-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
    notification_email {
    	acassen@firewall.loc
    	failover@firewall.loc
    	sysadmin@firewall.loc
    }
    notification_email_from Alexandre.Cassen@firewall.loc
    smtp_server 192.168.200.1
    smtp_connect_timeout 30
    router_id ka2.wang.org
    vrrp_skip_check_adv_addr
    #vrrp_strict
    vrrp_garp_interval 0
    vrrp_gna_interval 0
    vrrp_mcast_group4 239.0.0.0  #单播优先于多播
}

vrrp_instance VI_1 {
    state SLAVE
    interface eth0
    virtual_router_id 66
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.10/24 dev eth0 label eth0:1
    }
    unicast_src_ip 10.0.0.18       #本机IP
    unicast_peer {
    	10.0.0.8 #指向对方主机IP
    }
}

[root@ka2-centos8 ~]# hostname -I
10.0.0.18

范例: 抓包观察

1
2
3
4
5
6
root@centos6 ~]#tcpdump -i eth0 -nn src host 10.0.0.8 and dst host 10.0.0.18
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), capture size 65535 bytes
23:37:48.069158 IP 10.0.0.8 > 10.0.0.18: VRRPv2, Advertisement, vrid 66, prio 100, authtype simple, intvl 1s, length 20
23:37:49.070013 IP 10.0.0.8 > 10.0.0.18: VRRPv2, Advertisement, vrid 66, prio 100, authtype simple, intvl 1s, length 20
23:37:50.071144 IP 10.0.0.8 > 10.0.0.18: VRRPv2, Advertisement, vrid 66, prio 100, authtype simple, intvl 1s, length 20

Keepalived 通知脚本配置

当keepalived的状态变化时，可以自动触发脚本的执行，比如：发邮件通知用户

默认以用户keepalived_script身份执行脚本，如果此用户不存在，以root执行脚本

可以用下面指令指定脚本执行用户的身份

1
2
3
4
5
global_defs {
	......
	script_user <USER>
	......
}

通知脚本类型

  • 当前节点成为主节点时触发的脚本
1
notify_master <STRING>|<QUOTED-STRING>
  • 当前节点转为备节点时触发的脚本
1
notify_backup <STRING>|<QUOTED-STRING>
  • 当前节点转为“失败”状态时触发的脚本
1
notify_fault <STRING>|<QUOTED-STRING>
  • 通用格式的通知触发机制，一个脚本可完成以上三种状态的转换时的通知
1
notify <STRING>|<QUOTED-STRING>
  • 当停止VRRP时触发的脚本
1
notify_stop <STRING>|<QUOTED-STRING>

脚本的调用方法

在 vrrp_instance VI_1 语句块的末尾加下面行

1
2
3
notify_master "/etc/keepalived/notify.sh master"
notify_backup "/etc/keepalived/notify.sh backup"
notify_fault "/etc/keepalived/notify.sh fault"

实战案例1：实现 Keepalived 状态切换的通知脚本

以下脚本支持RHEL和Ubuntu系统

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
#在所有 keepalived节点配置如下
[root@ka1 ~]# cat /etc/keepalived/notify.sh
#!/bin/bash

contact='root@wangxiaochun.com'
email_send='29308620@qq.com'
email_passwd='dgezyimkdswwbhea'
email_smtp_server='smtp.qq.com'

. /etc/os-release
msg_error() {
  echo -e "\033[1;31m$1\033[0m"
}
msg_info() {
  echo -e "\033[1;32m$1\033[0m"
}
msg_warn() {
  echo -e "\033[1;33m$1\033[0m"
}

color () {
    RES_COL=60
    MOVE_TO_COL="echo -en \\033[${RES_COL}G"
    SETCOLOR_SUCCESS="echo -en \\033[1;32m"
    SETCOLOR_FAILURE="echo -en \\033[1;31m"
    SETCOLOR_WARNING="echo -en \\033[1;33m"
    SETCOLOR_NORMAL="echo -en \E[0m"
    echo -n "$1" && $MOVE_TO_COL
    echo -n "["
    if [ $2 = "success" -o $2 = "0" ] ;then
        ${SETCOLOR_SUCCESS}
        echo -n $" OK "
    elif [ $2 = "failure" -o $2 = "1" ] ;then
        ${SETCOLOR_FAILURE}
        echo -n $"FAILED"
    else
        ${SETCOLOR_WARNING}
        echo -n $"WARNING"
    fi
    ${SETCOLOR_NORMAL}
    echo -n "]"
    echo
}

install_sendemail () {
    if [[ $ID =~ rhel|centos|rocky ]];then
       rpm -q sendemail &> /dev/null || yum install -y sendemail
    elif [ $ID = 'ubuntu' ];then
       dpkg -l |grep -q sendemail || { apt update; apt install -y libio-socket-ssl-perl libnet-ssleay-perl sendemail ; }
    else
       color "不支持此操作系统，退出!" 1
        exit
    fi
}

send_email () {
   local email_receive="$1"
   local email_subject="$2"
   local email_message="$3"
   sendemail -f $email_send -t $email_receive -u $email_subject -m
$email_message -s $email_smtp_server -o message-charset=utf-8 -o tls=yes -xu
$email_send -xp $email_passwd
   [ $? -eq 0 ] && color "邮件发送成功!" 0 || color "邮件发送失败!" 1
}

notify() {
    if [[ $1 =~ ^(master|backup|fault)$ ]];then
        mailsubject="$(hostname) to be $1, vip floating"
        mailbody="$(date +'%F %T'): vrrp transition, $(hostname) changed to be
$1"
       send_email "$contact" "$mailsubject" "$mailbody"
   else
        echo "Usage: $(basename $0) {master|backup|fault}"
        exit 1
   fi
}

install_sendemail
notify $1


[root@ka1 ~]# chmod a+x /etc/keepalived/notify.sh
[root@ka1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance VI_1 {
	......
	virtual_ipaddress {
		10.0.0.10 dev eth0 label eth0:1
	}
	notify_master "/etc/keepalived/notify.sh master"
	notify_backup "/etc/keepalived/notify.sh backup"
	notify_fault "/etc/keepalived/notify.sh fault"
}

#模拟master故障
[root@ka1-centos8 ~]# killall keepalived

实战案例2：实现 Keepalived 状态切换的通知脚本

下面仅支持RHEL系统

邮件配置

案例：QQ邮箱配置

1
2
3
4
5
6
7
8
[root@centos8 ~]# vim /etc/mail.rc
#在最后面添加下面行
set from=29308620@qq.com
set smtp=smtp.qq.com
set smtp-auth-user=29308620@qq.com
set smtp-auth-password=esvnhbnqocirbicf
set smtp-auth=login
set ssl-verify=ignore

范例：163 邮箱配置

1
2
3
4
5
6
[root@centos8 ~]# vi /etc/mail.rc
set from=xxx@163.com #之前设置好的邮箱地址
set smtp=smtp.163.com #邮件服务器
set smtp-auth-user=xxx@163.com #之前设置好的邮箱地址
set smtp-auth-password=QXFIOQXEJNSVSDM #授权码
set smtp-auth=login #默认login即可

范例：发送测试邮件

1
2
[root@centos8 ~]# yum -y install mailx
[root@centos8 ~]# echo "Test Mail"| mail -s Warning root@wangxiaochun.com

创建通知脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
#在所有 keepalived节点配置如下
[root@ka1-centos8 ~]#cat /etc/keepalived/notify.sh
#!/bin/bash

contact='root@wangxiaochun.com'
notify() {
	mailsubject="$(hostname) to be $1, vip floating"
	mailbody="$(date +'%F %T'): vrrp transition, $(hostname) changed to be $1"
	echo "$mailbody" | mail -s "$mailsubject" $contact
}

case $1 in
master)
	notify master
	;;
backup)
	notify backup
 	;;
fault)
 	notify fault
 	;;
*)
 	echo "Usage: $(basename $0) {master|backup|fault}"
 	exit 1
	;;
esac


[root@ka1-centos8 ~]# chmod a+x /etc/keepalived/notify.sh
[root@ka1-centos8 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance VI_1 {
 ......
 virtual_ipaddress {
   10.0.0.10 dev eth0 label eth0:1
 }
 notify_master "/etc/keepalived/notify.sh master"
 notify_backup "/etc/keepalived/notify.sh backup"
 notify_fault "/etc/keepalived/notify.sh fault"
}

#模拟master故障
[root@ka1-centos8 ~]# killall keepalived

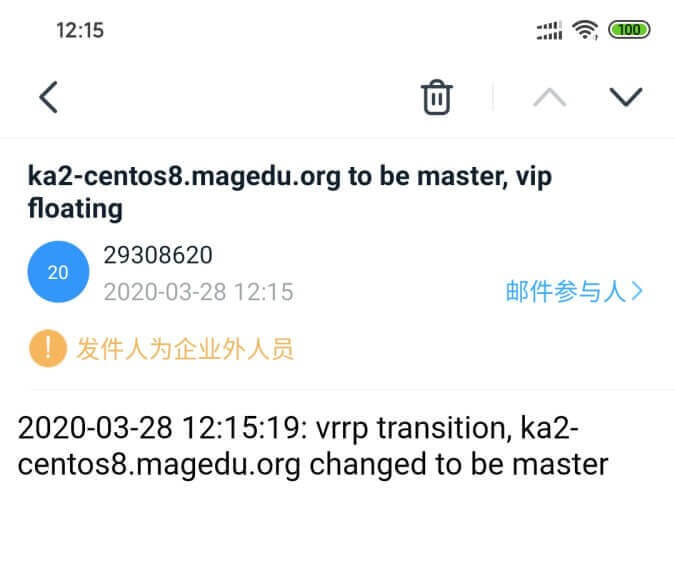

查看邮箱收到邮件如下：

7

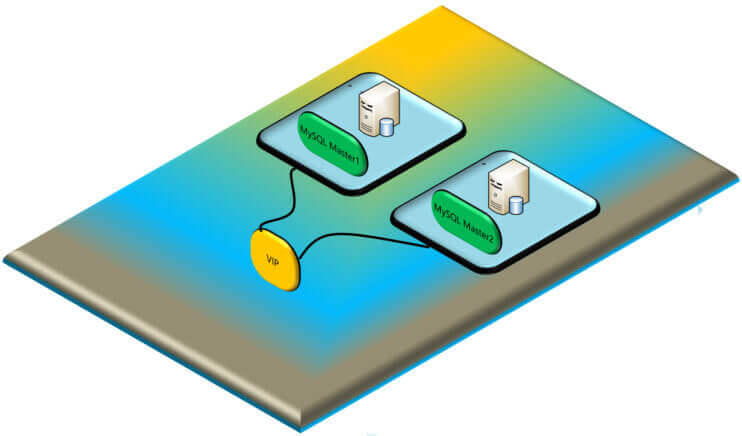

实现 Master/Master 的 Keepalived 双主架构

master/slave的单主架构，同一时间只有一个Keepalived对外提供服务，此主机繁忙，而另一台主机却很空闲，利用率低下，可以使用master/master的双主架构，解决此问题。

Master/Master 的双主架构：

即将两个或以上VIP分别运行在不同的keepalived服务器，以实现服务器并行提供web访问的目的，提高服务器资源利用率

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
#ha1主机配置
[root@ka1-centos8 ~]#vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@wangxiaochun.com
	}
	notification_email_from keepalived@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org
	vrrp_mcast_group4 224.0.100.100
}

vrrp_instance VI_1 {
	state MASTER   #在另一个主机上为BACKUP
	interface eth0
	virtual_router_id 66 #每个vrrp_instance唯一
	priority 100   #在另一个主机上为80
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 12345678
 	}
 	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1 #指定vrrp_instance各自的VIP
	}
}

vrrp_instance VI_2 {            #添加 VI_2 实例
	state BACKUP   #在另一个主机上为MASTER
	interface eth0
	virtual_router_id 88 #每个vrrp_instance唯一
	priority 80     #在另一个主机上为100
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 12345678
	}
	virtual_ipaddress {
		10.0.0.20/24 dev eth0 label eth0:1  #指定vrrp_instance各自的VIP
	}
}

#ka2主机配置,和ka1配置只需五行不同
[root@ka2-centos8 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@wangxiaochun.com
	}
	notification_email_from keepalived@localhost
 	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka2.wang.org        #修改此行
	vrrp_mcast_group4 224.0.100.100
}

vrrp_instance VI_1 {
	state BACKUP #此修改行为BACKUP
	interface eth0
	virtual_router_id 66
	priority 80   #此修改行为80
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 12345678
	}
	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1
	}
}
vrrp_instance VI_2 {
    state MASTER   #修改此行为MASTER
    interface eth0
    virtual_router_id 88
    priority 100   #修改此行为100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 12345678
    }
    virtual_ipaddress {
        10.0.0.20/24 dev eth0 label eth0:1
    }
}

实战案例：利用子配置文件实现master/master的Keepalived双主架构

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
[root@ka1-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
    	acassen@firewall.loc
    	failover@firewall.loc
    	sysadmin@firewall.loc
	}
	notification_email_from Alexandre.Cassen@firewall.loc
    smtp_server 192.168.200.1
    smtp_connect_timeout 30
    router_id ha1.wang.org
    vrrp_skip_check_adv_addr
    #vrrp_strict
    vrrp_garp_interval 0
    vrrp_gna_interval 0
}

include /etc/keepalived/conf.d/*.conf

[root@ka1-centos8 ~]# mkdir /etc/keepalived/conf.d/
[root@ka1-centos8 ~]# cat /etc/keepalived/conf.d/cluster1.conf
vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 66
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.10/24 dev eth0 label eth0:1
    }
    unicast_src_ip 10.0.0.8
    unicast_peer{
    	10.0.0.18
    }
    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"
}

[root@ka1-centos8 ~]# cat /etc/keepalived/conf.d/cluster2.conf
vrrp_instance VI_2 {
    state BACKUP
    interface eth0
    virtual_router_id 88
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.20/24 dev eth0 label eth0:1
    }
    unicast_src_ip 10.0.0.8
    unicast_peer{
        10.0.0.18
    }
    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"
}

[root@ka1-centos8 ~]# tree /etc/keepalived/
/etc/keepalived/
├── conf.d
│   ├── cluster1.conf
│   └── cluster2.conf
├── keepalived.conf
├── keepalived.conf.bak
└── notify.sh

1 directory, 5 files

#ka2主机的配置
[root@ka2-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    notification_email {
    	acassen@firewall.loc
    	failover@firewall.loc
    	sysadmin@firewall.loc
    }
    notification_email_from Alexandre.Cassen@firewall.loc
    smtp_server 192.168.200.1
    smtp_connect_timeout 30
    router_id ha2.wang.org
    vrrp_skip_check_adv_addr
    #vrrp_strict
    vrrp_garp_interval 0
    vrrp_gna_interval 0
}
include /etc/keepalived/conf.d/*.conf

[root@ka2-centos8 ~]# cat /etc/keepalived/conf.d/cluster1.conf
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 66
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.10/24 dev eth0 label eth0:1
    }
    unicast_src_ip 10.0.0.18
    unicast_peer {
        10.0.0.8
    }
    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"
}

[root@ka2-centos8 ~]# cat /etc/keepalived/conf.d/cluster2.conf
vrrp_instance VI_2 {
    state MASTER
    interface eth0
    virtual_router_id 88
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.20/24 dev eth0 label eth0:1
    }
    unicast_src_ip 10.0.0.18
    unicast_peer{
    	10.0.0.8
   	}
    notify_master "/etc/keepalived/notify.sh master"
    notify_backup "/etc/keepalived/notify.sh backup"
    notify_fault "/etc/keepalived/notify.sh fault"
}

#查看IP
[root@ka1-centos8 ~]# hostname -I
10.0.0.8 10.0.0.10

[root@ka2-centos8 ~]# hostname -I
10.0.0.18 10.0.0.20

#ka1主机故障，测试VIP漂移至ka2主机
[root@ka1-centos8 ~]# killall keepalived
[root@ka1-centos8 ~]# hostname -I
10.0.0.8

[root@ka2-centos8 ~]# hostname -I
10.0.0.18 10.0.0.20 10.0.0.10

#恢复ka1主机
[root@ka1-centos8 ~]# systemctl start keepalived.service
[root@ka1-centos8 ~]# hostname -I
10.0.0.8 10.0.0.10

[root@ka2-centos8 ~]# hostname -I
10.0.0.18 10.0.0.20

#脑裂现象
[root@ka1-centos8 ~]# hostname -I
10.0.0.8 10.0.0.10
[root@ka1-centos8 ~]# iptables -A INPUT -s10.0.0.18 -j DROP
[root@ka1-centos8 ~]# hostname -I
10.0.0.8 10.0.0.10 10.0.0.20

[root@ka2-centos8 ~]# hostname -I
10.0.0.18 10.0.0.20

[root@ka2-centos8 ~]# iptables -A INPUT -s 10.0.0.8 -j REJECT
[root@ka2-centos8 ~]# hostname -I
10.0.0.18 10.0.0.20 10.0.0.10

实现多主模架构

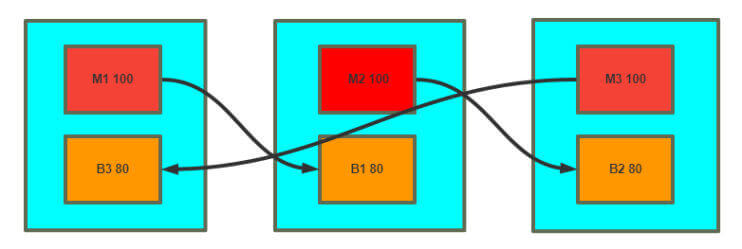

案例：三个节点的三主三从架构实现

8

1
2
3
4
5
6
7
8
9
10
11
#第一个节点ka1配置：
virtual_router_id 1 , Vrrp instance 1 , MASTER，优先级 100
virtual_router_id 3 , Vrrp instance 2 , BACKUP，优先级 80

#第二个节点ka2配置：
virtual_router_id 2 , Vrrp instance 1 , MASTER，优先级 100
virtual_router_id 1 , Vrrp instance 2 , BACKUP，优先级 80\

#第三个节点ka3配置：
virtual_router_id 3 , Vrrp instance 1 , MASTER，优先级 100
virtual_router_id 2 , Vrrp instance 2 , BACKUP，优先级 80

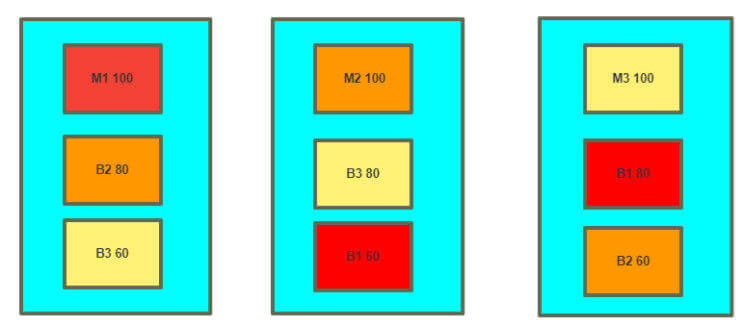

案例：三个节点的三主六从架构实现

9

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#第一个节点ka1配置：
virtual_router_id 1 , Vrrp instance 1 , MASTER，优先级100
virtual_router_id 2 , Vrrp instance 2 , BACKUP，优先级80
virtual_router_id 3 , Vrrp instance 3 , BACKUP，优先级60

#第二个节点ka2配置：
virtual_router_id 1 , Vrrp instance 1 , BACKUP，优先级60
virtual_router_id 2 , Vrrp instance 2 , MASTER，优先级100
virtual_router_id 3 , Vrrp instance 3 , BACKUP，优先级80

#第三个节点ka3配置：
virtual_router_id 1 , Vrrp instance 1 , BACKUP，优先级80
virtual_router_id 2 , Vrrp instance 2 , BACKUP，优先级60
virtual_router_id 3 , Vrrp instance 3 , MASTER，优先级100

同步组

LVS NAT 模型VIP和DIP需要同步，需要同步组

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
vrrp_sync_group VG_1 {
	group {
		VI_1  # name of vrrp_instance (below)
		VI_2  # One for each moveable IP
	}
}

vrrp_instance VI_1 {
	eth0
	vip
}

vrrp_instance VI_2 {
	eth1
	dip
}

实现 IPVS 的高可用性

IPVS 相关配置

虚拟服务器配置结构

每一个虚拟服务器即一个IPVS集群

可以通过下面语法实现

1
2
3
4
5
6
7
8
9
10
virtual_server IP port {
	...
	real_server {
		...
	}
	real_server {
		...
	}
	…
}

Virtual Server （虚拟服务器）的定义格式

1
2
3
virtual_server IP port        #定义虚拟主机IP地址及其端口
virtual_server fwmark int     #ipvs的防火墙打标，实现基于防火墙的负载均衡集群
virtual_server group string   #使用虚拟服务器组

虚拟服务器组

将多个虚拟服务器定义成一个组，统一对外服务，如：http和https定义成一个虚拟服务器组

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
#参考文档：/usr/share/doc/keepalived/keepalived.conf.virtual_server_group
virtual_server_group <STRING> {
           # Virtual IP Address and Port
           <IPADDR> <PORT>
           <IPADDR> <PORT>
           ...
           # <IPADDR RANGE> has the form
           # XXX.YYY.ZZZ.WWW-VVV eg 192.168.200.1-10
           # range includes both .1 and .10 address
           <IPADDR RANGE> <PORT># VIP range VPORT
           <IPADDR RANGE> <PORT>
           ...
           # Firewall Mark (fwmark)
           fwmark <INTEGER>
           fwmark <INTEGER>
           ...
}

虚拟服务器配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
virtual_server IP port {               #VIP和PORT
     delay_loop <INT>                      #检查后端服务器的时间间隔
     lb_algo rr|wrr|lc|wlc|lblc|sh|dh      #定义调度方法
     lb_kind NAT|DR|TUN                    #集群的类型,注意要大写
     persistence_timeout <INT>             #持久连接时长
     protocol TCP|UDP|SCTP                 #指定服务协议,一般为TCP
     sorry_server <IPADDR> <PORT>          #所有RS故障时，备用服务器地址
     real_server <IPADDR> <PORT> {         #RS的IP和PORT
         weight <INT>                          #RS权重
         notify_up <STRING>|<QUOTED-STRING>    #RS上线通知脚本
         notify_down <STRING>|<QUOTED-STRING>  #RS下线通知脚本
         HTTP_GET|SSL_GET|TCP_CHECK|SMTP_CHECK|MISC_CHECK { ... } #定义当前主机健康状态检测方法
     }
}

#注意:括号必须分行写,两个括号写在同一行,如: }} 会出错

应用层监测

应用层检测：HTTP_GET|SSL_GET

1
2
3
4
5
6
7
8
9
10
11
12
13
HTTP_GET|SSL_GET {
	url {
		path <URL_PATH>         #定义要监控的URL
		status_code <INT>       #判断上述检测机制为健康状态的响应码，一般为 200
	}
	connect_timeout <INTEGER>   #客户端请求的超时时长, 相当于haproxy的timeout server
	nb_get_retry <INT>          #重试次数
 	delay_before_retry <INT>    #重试之前的延迟时长
 	connect_ip <IP ADDRESS>     #向当前RS哪个IP地址发起健康状态检测请求
	connect_port <PORT>         #向当前RS的哪个PORT发起健康状态检测请求
 	bindto <IP ADDRESS>         #向当前RS发出健康状态检测请求时使用的源地址
 	bind_port <PORT>            #向当前RS发出健康状态检测请求时使用的源端口
}

范例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
virtual_server 10.0.0.10 80 {
    delay_loop 3
    lb_algo rr
    lb_kind DR
    protocol TCP
    sorry_server 127.0.0.1 80
    real_server 10.0.0.7 80 {
        weight 1
        HTTP_GET {
            url {
                path /monitor.html
                status_code 200
            }
        connect_timeout 1
        nb_get_retry 3
        delay_before_retry 1
   		}
    }
    real_server 10.0.0.17 80 {
        weight 1
        HTTP_GET {
            url {
                path /
                status_code 200
            }
        connect_timeout 1
        nb_get_retry 3
        delay_before_retry 1
        }
    }
}

TCP监测

传输层检测：TCP_CHECK

1
2
3
4
5
6
7
TCP_CHECK {
     connect_ip <IP ADDRESS>  #向当前RS的哪个IP地址发起健康状态检测请求
     connect_port <PORT>      #向当前RS的哪个PORT发起健康状态检测请求
     bindto <IP ADDRESS>      #发出健康状态检测请求时使用的源地址
     bind_port <PORT>         #发出健康状态检测请求时使用的源端口
     connect_timeout <INTEGER> #客户端请求的超时时长, 等于haproxy的timeout server
}

范例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
virtual_server 10.0.0.10 80 {
    delay_loop 6
    lb_algo wrr
    lb_kind DR
    #persistence_timeout 120   #会话保持时间
    protocol TCP
    sorry_server 127.0.0.1 80
    real_server 10.0.0.7 80 {
        weight 1
        TCP_CHECK {
        	connect_timeout 5
       		nb_get_retry 3
        	delay_before_retry 3
          	connect_port 80
       	}
    }
    real_server 10.0.0.17 80 {
        weight 1
        TCP_CHECK {
       		connect_timeout 5
        	nb_get_retry 3
       		delay_before_retry 3
         	connect_port 80
       	}
   	}
}

实战案例

实战案例：实现单主的 LVS-DR 模式

准备web服务器并使用脚本绑定VIP至web服务器lo网卡

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
#准备两台后端RS主机
[root@rs1 ~]# cat lvs_dr_rs.sh
#!/bin/bash
#Author:wangxiaochun
#Date:2017-08-13
vip=10.0.0.10
mask='255.255.255.255'
dev=lo:1
rpm -q httpd &> /dev/null || yum -y install httpd &>/dev/null
service httpd start &> /dev/null && echo "The httpd Server is Ready!"
echo "<h1>`hostname`</h1>" > /var/www/html/index.html
case $1 in
start)
    echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
    echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
    echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
    echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce
   ifconfig $dev $vip netmask $mask #broadcast $vip up
    #route add -host $vip dev $dev
    echo "The RS Server is Ready!"
   ;;
stop)
   ifconfig $dev down
    echo 0 > /proc/sys/net/ipv4/conf/all/arp_ignore
    echo 0 > /proc/sys/net/ipv4/conf/lo/arp_ignore
    echo 0 > /proc/sys/net/ipv4/conf/all/arp_announce
    echo 0 > /proc/sys/net/ipv4/conf/lo/arp_announce
    echo "The RS Server is Canceled!"
   ;;
*)
    echo "Usage: $(basename $0) start|stop"
    exit 1
   ;;
esac

[root@rs1 ~]# bash lvs_dr_rs.sh start
The httpd Server is Ready!
The RS Server is Ready!

[root@rs1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default qlen 1000
   link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
   inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
   inet 10.0.0.10/32 scope global lo:1
       valid_lft forever preferred_lft forever
   inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP
group default qlen 1000
   link/ether 00:0c:29:32:80:38 brd ff:ff:ff:ff:ff:ff
   inet 10.0.0.7/24 brd 10.0.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
   inet6 fe80::20c:29ff:fe32:8038/64 scope link
       valid_lft forever preferred_lft forever

[root@rs2 ~]# bash lvs_dr_rs.sh start
The httpd Server is Ready!
The RS Server is Ready!

[root@rs2 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default qlen 1000
   link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
   inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
   inet 10.0.0.10/32 scope global lo:1
       valid_lft forever preferred_lft forever
   inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP
group default qlen 1000
   link/ether 00:0c:29:33:b4:1a brd ff:ff:ff:ff:ff:ff
   inet 10.0.0.17/24 brd 10.0.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
   inet6 fe80::20c:29ff:fe33:b41a/64 scope link
       valid_lft forever preferred_lft forever

#测试直接访问两台RS
[root@centos6 ~]# curl 10.0.0.7
<h1>rs1.wang.org</h1>
[root@centos6 ~]# curl 10.0.0.17
<h1>rs2.wang.org</h1>

配置keepalived

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
#ka1节点的配置
[root@ka1-centos8 ~]# cat  /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from keepalived@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org
	vrrp_mcast_group4 224.0.100.10
}

vrrp_instance VI_1 {
	state MASTER
	interface eth0
	virtual_router_id 66
	priority 100
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1
	}
 	notify_master "/etc/keepalived/notify.sh master"
 	notify_backup "/etc/keepalived/notify.sh backup"
 	notify_fault "/etc/keepalived/notify.sh fault"
}

virtual_server 10.0.0.10 80 {
	delay_loop 3
	lb_algo rr
	lb_kind DR
	protocol TCP
	sorry_server 127.0.0.1 80
	real_server 10.0.0.7 80 {
        weight 1
        HTTP_GET {               #应用层检测
            url {
                path /
                status_code 200
            }
            connect_timeout 1
            nb_get_retry 3
            delay_before_retry 1
        }
	}

    real_server 10.0.0.17 80 {
        weight 1
        TCP_CHECK {              #另一台主机使用TCP检测
            connect_timeout 5
            nb_get_retry 3
            delay_before_retry 3
            connect_port 80
        }
   }
}


#ka2节点的配置，配置和ka1基本相同，只需修改三行
[root@ka2-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from keepalived@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org             #修改此行
	vrrp_mcast_group4 224.0.100.10
}

vrrp_instance VI_1 {
	state BACKUP #修改此行
	interface eth0
	virtual_router_id 66
	priority 80 #修改此行
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1
	}
	notify_master "/etc/keepalived/notify.sh master"
	notify_backup "/etc/keepalived/notify.sh backup"
	notify_fault "/etc/keepalived/notify.sh fault"
}

virtual_server 10.0.0.10 80 {
	delay_loop 3
	lb_algo rr
	lb_kind DR
	protocol TCP
	sorry_server 127.0.0.1 80
	real_server 10.0.0.7 80 {
		weight 1
			HTTP_GET {
				url {
					path /
					status_code 200
				}
				connect_timeout 1
				nb_get_retry 3
				delay_before_retry 1
			}
	}
	real_server 10.0.0.17 80 {
		weight 1
    	TCP_CHECK {
    		connect_timeout 5
       		nb_get_retry 3
       		delay_before_retry 3
            connect_port 80
		}
    }
}

访问测试结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@centos6 ~]# curl 10.0.0.10
<h1>rs1.wang.org</h1>

[root@centos6 ~]# curl 10.0.0.10
<h1>rs2.wang.org</h1>

[root@ka1-centos8 ~]# dnf -y install ipvsadm
[root@ka1-centos8 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.0.0.10:80 rr
  -> 10.0.0.7:80                  Route   1      0          0
  -> 10.0.0.17:80                 Route   1      0          0

模拟故障

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
#第一台RS1故障，自动切换至RS2
[root@rs1 ~]# chmod 0 /var/www/html/index.html
[root@centos6 ~]# curl 10.0.0.10
<h1>rs2.wang.org</h1>

[root@centos6 ~]# curl 10.0.0.10
<h1>rs2.wang.org</h1>

[root@ka1-centos8 ~]# dnf -y install ipvsadm
[root@ka1-centos8 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.0.0.10:80 rr
  -> 10.0.0.17:80                 Route   1      0          3

#后端RS服务器都故障，启动Sorry Server
[root@rs2 ~]# systemctl stop httpd
[root@centos6 ~]# curl 10.0.0.10
Sorry Server on ka1

[root@ka1-centos8 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.0.0.10:80 rr
  -> 127.0.0.1:80                 Route   1      0          0
#ka1故障，自动切换至ka2
[root@ka1-centos8 ~]# killall keepalived
[root@centos6 ~]# curl 10.0.0.10
Sorry Server on ka2

#恢复都有后端 RS
[root@rs1 ~]# chmod 644 /var/www/html/index.html
[root@rs2 ~]# systemctl start httpd
[root@centos6 ~]# curl 10.0.0.10
<h1>rs1.wang.org</h1>

[root@centos6 ~]# curl 10.0.0.10
<h1>rs2.wang.org</h1>

[root@ka1-centos8 ~]# hostname -I
10.0.0.8

[root@ka2-centos8 ~]# hostname -I
10.0.0.18 10.0.0.10

#恢复ka1服务器，又抢占回原来的VIP
[root@ka1-centos8 ~]# systemctl start keepalived.service
[root@ka1-centos8 ~]# hostname -I
10.0.0.8 10.0.0.10

[root@ka2-centos8 ~]# hostname -I
10.0.0.18

[root@centos6 ~]# curl 10.0.0.10
<h1>rs1.wang.org</h1>

[root@centos6 ~]# curl 10.0.0.10
<h1>rs2.wang.org</h1>

实战案例：实现双主的 LVS-DR 模式

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
[root@ka1-centos8 ~]#vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from keepalived@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org   #另一个节点为ka2.wang.org
	vrrp_mcast_group4 224.0.100.10
}

vrrp_instance VI_1 {
	state MASTER     #在另一个结点上为BACKUP
	interface eth0
	virtual_router_id 66
	priority 100         #在另一个结点上为80
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1 #指定VIP
	}
}

vrrp_instance VI_2 {
	state BACKUP     #在另一个结点上为MASTER
	interface eth0
	virtual_router_id  88
	priority 80         #在另一个结点上为100
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
 	virtual_ipaddress {
		10.0.0.20/24 dev eth0 label eth0:2 #指定VIP2
	}
}

virtual_server 10.0.0.10 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    protocol TCP
    sorry_server 127.0.0.1 80
    real_server 10.0.0.7 80 {  #指定RS1地址
        weight 1
        HTTP_GET {
            url {
            	path /
                status_code 200
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 10.0.0.17 80 {   #指定RS2地址
        weight 1
        HTTP_GET {
            url {
                path /
                status_code 200
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
   }
}

virtual_server 10.0.0.20 80 { #指定VIP2
	delay_loop 6
	lb_algo rr
	lb_kind DR
	protocol TCP
	sorry_server 127.0.0.1 80
	real_server 10.0.0.27 80 { #指定RS3地址
		weight 1
		HTTP_GET {
			url {
				path /
				status_code 200
			}
			connect_timeout 3
			nb_get_retry 3
			delay_before_retry 3
		}
	}
	real_server 10.0.0.37 80 {   #指定RS4地址
		weight 1
		HTTP_GET {
			url {
				path /
				status_code 200
			}
			connect_timeout 3
			nb_get_retry 3
			delay_before_retry 3
		}
	}
}

范例: 双主分别实现httpd和mysql服务的调度

10

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
[root@ka1 conf.d]# cat web1.conf
vrrp_instance web1 {
    state MASTER
    interface eth0
    virtual_router_id 66
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
		10.0.0.100/24 dev eth0 label eth0:100
	}
	notify_master "/etc/keepalived/notify.sh master"             notify_backup "/etc/keepalived/notify.sh backup"
	notify_fault "/etc/keepalived/notify.sh fault"
}

[root@ka1 conf.d]# cat lvs_.conf
lvs_mysql.conf lvs_web1.conf

[root@ka1 conf.d]# cat lvs_web1.conf
virtual_server 10.0.0.100 80 {
	delay_loop 3
	lb_algo rr
	lb_kind DR
	protocol TCP
	sorry_server 127.0.0.1 80
	real_server 10.0.0.7 80 {
		weight 1
		HTTP_GET {
			url {
				path /monitor.html
 				status_code 200
			}
			connect_timeout 1
			nb_get_retry 3
			delay_before_retry 1
		}
 	}
	real_server 10.0.0.17 80 {
		weight 1
		TCP_CHECK {
        	connect_timeout 5
        	nb_get_retry 3
        	delay_before_retry 3
            connect_port 80
		}
    }
}

[root@ka1 conf.d]# cat mysql_vip.conf
vrrp_instance mysql{
	state BACKUP
    interface eth0
    virtual_router_id 88
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
 		10.0.0.200/24 dev eth0 label eth0:200
    }
}

[root@ka1 conf.d]# cat lvs_mysql.conf
virtual_server 10.0.0.200 3306 {
	delay_loop 3
	lb_algo rr
	lb_kind DR
	protocol TCP
	real_server 10.0.0.7 3306 {
		weight 1
		TCP_CHECK {
			connect_timeout 5
			nb_get_retry 3
			delay_before_retry 3
            connect_port 3306
		}
	}
	real_server 10.0.0.17 3306 {
		weight 1
		TCP_CHECK {
 			connect_timeout 5
        	nb_get_retry 3
        	delay_before_retry 3
            connect_port 3306
 		}
    }
}

#注意:在后端服务器要实现两个VIP的配置
[root@web1 ~]# ip a show lo
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default qlen 1000
   link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
   inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
   inet 10.0.0.100/32 scope global lo:1
       valid_lft forever preferred_lft forever
   inet 10.0.0.200/32 scope global lo:2
       valid_lft forever preferred_lft forever
   inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever


[root@ka1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.0.0.100:80 rr
  -> 10.0.0.7:80                 Route   1      0          0
  -> 10.0.0.17:80                 Route   1      0          0
TCP  10.0.0.200:3306 rr
  -> 10.0.0.7:3306               Route   1      0          0
  -> 10.0.0.17:3306               Route   1      0          0


#测试
[root@client ~]# while true;do mysql -utest -p123456 -h10.0.0.200 -e 'show variables like "%hostname%"';curl 10.0.0.100;sleep 0.5;done
+---------------+-----------------+
| Variable_name | Value           |
+---------------+-----------------+
| hostname      | web1.wang.org   |
+---------------+-----------------+
10.0.0.17
+---------------+-----------------+
| Variable_name | Value           |
+---------------+-----------------+
| hostname      | web2.wang.org   |
+---------------+-----------------+
10.0.0.7

实战案例：实现单主的 LVS-DR 模式，利用FWM绑定成多个服 务为一个集群服务

参考文档： 注意有bug

1
/usr/share/doc/keepalived/keepalived.conf.fwmark

范例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
#两个节点都执行以下操作
[root@ka1-centos8 ~]# iptables -t mangle -A PREROUTING -d 10.0.0.10   -p tcp -m multiport --dports 80,443 -j MARK --set-mark 6
[root@ka1-centos8 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from kaadmin@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org #在另一个节点为ka2.wang.org
	vrrp_mcast_group4 224.100.100.100
}

vrrp_instance VI_1 {
	state MASTER #在另一个节点为BACKUP
	interface eth0
	virtual_router_id 66
	priority 100 #在另一个节点为80
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
	virtual_ipaddress {
 		10.0.0.10/24 dev eth0 label eth0:1
	}
	track_interface {
		eth0
	}
	notify_master "/etc/keepalived/notify.sh master"
	notify_backup "/etc/keepalived/notify.sh backup"
	notify_fault "/etc/keepalived/notify.sh fault"
}

virtual_server fwmark 6 {   #指定FWM为6
	delay_loop 2
	lb_algo rr
	lb_kind DR
	sorry_server 127.0.0.1 80  #注意端口必须指定
	real_server 10.0.0.7 80 {  #注意端口必须指定
		weight 1
		HTTP_GET {
			url {
				path /
				status_code 200
			}
			connect_timeout 2
			nb_get_retry 3
			delay_before_retry 3
		}
	}
	real_server 10.0.0.17 80 { #注意端口必须指定,只用于健康性检查,而非通信
		weight 1
		HTTP_GET {
			url {
				path /
				status_code 200
			}
			connect_timeout 2
			nb_get_retry 3
			delay_before_retry 3
		}
	}
}

#在RS1和RS2运行下面脚本
[root@rs1 ~]# cat lvs_dr_rs.sh
#!/bin/bash

vip=10.0.0.10
vip2=10.0.0.20
mask='255.255.255.255'
dev=lo:1
dev2=lo:2
rpm -q httpd &> /dev/null || yum -y install httpd &>/dev/null
service httpd start &> /dev/null && echo "The httpd Server is Ready!"
echo "<h1>`hostname`</h1>" > /var/www/html/index.html

case $1 in
start)
    echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
    echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
    echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
    echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce
   ifconfig $dev $vip netmask $mask #broadcast $vip up
   ifconfig $dev2 $vip2 netmask $mask #broadcast $vip up
    #route add -host $vip dev $dev
    echo "The RS Server is Ready!"
   ;;
stop)
   ifconfig $dev down
   ifconfig $dev2 down
    echo 0 > /proc/sys/net/ipv4/conf/all/arp_ignore
    echo 0 > /proc/sys/net/ipv4/conf/lo/arp_ignore
    echo 0 > /proc/sys/net/ipv4/conf/all/arp_announce
    echo 0 > /proc/sys/net/ipv4/conf/lo/arp_announce
    echo "The RS Server is Canceled!"
   ;;
*)
    echo "Usage: $(basename $0) start|stop"
    exit 1
   ;;
esac

[root@rs1 ~]# bash lvs_dr_rs.sh start
[root@rs2 ~]# bash lvs_dr_rs.sh start

#访问测试
[root@centos6 ~]# curl 10.0.0.10;curl -k https://10.0.0.20
<h1>rs1.wang.org</h1>
<h1>rs2.wang.org</h1>

基于 VRRP Script 实现其它应用的高可用性

keepalived利用 VRRP Script 技术，可以调用外部的辅助脚本进行资源监控，并根据监控的结果实现优先动态调整，从而实现其它应用的高可用性功能

参考配置文件：

1
/usr/share/doc/keepalived/keepalived.conf.vrrp.localcheck

VRRP Script 配置

分两步实现：

  • 定义脚本

    vrrp_script：自定义资源监控脚本，vrrp实例根据脚本返回值，公共定义，可被多个实例调用，定义在vrrp实例之外的独立配置块，一般放在global_defs设置块之后,是和global_defs平级的语句块

    通常此脚本用于监控指定应用的状态。一旦发现应用的状态异常，则触发对MASTER节点的权重减至低于SLAVE节点，从而实现 VIP 切换到 SLAVE 节点

    当 keepalived_script 用户存在时,会以此用户身份运行脚本,否则默认以root运行脚本

    注意: 此定义脚本的语句块一定要放在下面调用此语句vrrp_instance语句块的前面

1
2
3
4
vrrp_script <SCRIPT_NAME> {
	script <STRING>|<QUOTED-STRING>   #此脚本返回值为非0时，会触发下面OPTIONS执行
	OPTIONS
}

  • 调用脚本

    track_script：调用vrrp_script定义的脚本去监控资源，定义在VRRP实例之内，调用事先定义的vrrp_script

1
2
3
4
track_script {
	SCRIPT_NAME_1
	SCRIPT_NAME_2
}

定义 VRRP script

1
2
3
4
5
6
7
8
9
10
vrrp_script <SCRIPT_NAME> { #定义一个检测脚本，在global_defs 之外配置
     script <STRING>|<QUOTED-STRING>  #shell命令或脚本路径
     interval <INTEGER>               #间隔时间，单位为秒，默认1秒
     timeout <INTEGER>                #超时时间
     weight <INTEGER:-254..254>       #默认为0,如果设置此值为负数，当上面脚本返回值为非0时，会将此值与本节点权重相加可以降低本节点权重，即表示fall. 如果是正数，当脚本返回值为0，会将此值与本节点权重相加可以提高本节点权重，即表示 rise.通常使用负值
     fall <INTEGER>                   #执行脚本连续几次都失败,则转换为失败，建议设为2以上
     rise <INTEGER>                   #执行脚本连续几次都成功，把服务器从失败标记为成功
     user USERNAME [GROUPNAME]        #执行监测脚本的用户或组
     init_fail                        #设置默认标记为失败状态，监测成功之后再转换为成功状态
}

调用 VRRP script

1
2
3
4
5
6
vrrp_instance VI_1 {
	…
	track_script {
		<SCRIPT_NAME>
	}
}

实战案例：利用脚本实现主从角色切换

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
[root@ka1-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from kaadmin@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org #在另一个节点为ka2.wang.org
	vrrp_mcast_group4 224.0.100.100
}

vrrp_script check_down {
    script "[ ! -f /etc/keepalived/down ]" #/etc/keepalived/down存在时返回非0，触发权重-30
    interval 1
    weight -30
    fall 3
    rise 2
    timeout 2
}

vrrp_instance VI_1 {
	state MASTER #在另一个节点为BACKUP
	interface eth0
	virtual_router_id 66
	priority 100 #在另一个节点为80
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1
	}
	track_interface {
		eth0
	}
	notify_master "/etc/keepalived/notify.sh master"
	notify_backup "/etc/keepalived/notify.sh backup"
	notify_fault "/etc/keepalived/notify.sh fault"
  	track_script {
        check_down           #调用前面定义的脚本
    }
}

[root@ka1-centos8 ~]# touch /etc/keepalived/down
[root@ka1-centos8 ~]# tail -f /var/log/messages
Mar 28 19:47:03 ka1-centos8 Keepalived_vrrp[7200]: Script `check_down` now returning 1
Mar 28 19:47:05 ka1-centos8 Keepalived_vrrp[7200]: VRRP_Script(chk_down) failed (exited with status 1)
Mar 28 19:47:05 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) Changing effective priority from 100 to 70
Mar 28 19:47:07 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) Master received advert
from 10.0.0.18 with higher priority 80, ours 70
Mar 28 19:47:07 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) Entering BACKUP STATE
Mar 28 19:47:07 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) removing VIPs.

[root@rs1 ~]# tcpdump -i eth0 -nn 224.0.100.100
19:42:09.578203 IP 10.0.0.8 > 224.0.100.100: VRRPv2, Advertisement, vrid 66,
prio 100, authtype simple, intvl 1s, length 20
19:42:10.579304 IP 10.0.0.8 > 224.0.100.100: VRRPv2, Advertisement, vrid 66,
prio 70, authtype simple, intvl 1s, length 20

[root@ka1-centos8 ~]# rm -f /etc/keepalived/down
[root@ka1-centos8 ~]# tail -f /var/log/messages
Mar 28 19:47:45 ka1-centos8 Keepalived_vrrp[7200]: Script `check_down` now returning 0
Mar 28 19:47:46 ka1-centos8 Keepalived_vrrp[7200]: VRRP_Script(check_down) succeeded
Mar 28 19:47:46 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) Changing effective priority from 70 to 100
Mar 28 19:47:46 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) received lower priority (80) advert from 10.0.0.18 - discarding
Mar 28 19:47:47 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) received lower priority (80) advert from 10.0.0.18 - discarding
Mar 28 19:47:48 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) received lower priority (80) advert from 10.0.0.18 - discarding
Mar 28 19:47:49 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) Receive advertisement timeout
Mar 28 19:47:49 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) Entering MASTER STATE
Mar 28 19:47:49 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) setting VIPs.
Mar 28 19:47:49 ka1-centos8 Keepalived_vrrp[7200]: Sending gratuitous ARP on eth0 for 10.0.0.10
Mar 28 19:47:49 ka1-centos8 Keepalived_vrrp[7200]: (VI_1) Sending/queueing gratuitous ARPs on eth0 for 10.0.0.10
Mar 28 19:47:49 ka1-centos8 Keepalived_vrrp[7200]: Sending gratuitous ARP on eth0 for 10.0.0.10
Mar 28 19:47:49 ka1-centos8 Keepalived_vrrp[7200]: Sending gratuitous ARP on eth0 for 10.0.0.10

[root@rs1 ~]# tcpdump -i eth0 -nn 224.0.100.100
19:49:16.199462 IP 10.0.0.18 > 224.0.100.100: VRRPv2, Advertisement, vrid 66, prio 80, authtype simple, intvl 1s, length 20
19:49:17.199897 IP 10.0.0.18 > 224.0.100.100: VRRPv2, Advertisement, vrid 66, prio 80, authtype simple, intvl 1s, length 20
19:49:17.810376 IP 10.0.0.8 > 224.0.100.100: VRRPv2, Advertisement, vrid 66, prio 100, authtype simple, intvl 1s, length 20
19:49:18.811048 IP 10.0.0.8 > 224.0.100.100: VRRPv2, Advertisement, vrid 66, prio 100, authtype simple, intvl 1s, length 20

实战案例：实现单主模式的 Nginx 反向代理的高可用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
#在两个节点都配置nginx反向代理
[root@ka1-centos8 ~]#vim /etc/nginx/nginx.conf
http {
	upstream websrvs {
		server 10.0.0.7:80 weight=1;
		server 10.0.0.17:80 weight=1;
	}
	server {
		listen 80;
		location /{
			proxy_pass http://websrvs/;
		}
	}
}

#在两个节点都配置实现nginx反向代理高可用
[root@ka1-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from kaadmin@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org #在另一个节点为ka2.wang.org
	vrrp_mcast_group4 224.0.100.100
}

vrrp_script check_nginx {
    script "/etc/keepalived/check_nginx.sh"
    #script "/usr/bin/killall -0 nginx"   此写法支持
    #script "/usr/bin/killall -0 nginx &>/dev/null" 不支持&>此写法
    interval 1
    weight -30
    fall 3
    rise 5
    timeout 2
}

vrrp_instance VI_1 {
	state MASTER #在另一个节点为BACKUP
	interface eth0
	virtual_router_id 66
	priority 100 #在另一个节点为80
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1
	}
	track_interface {
		eth0
	}
	notify_master "/etc/keepalived/notify.sh master"
	notify_backup "/etc/keepalived/notify.sh backup"
	notify_fault "/etc/keepalived/notify.sh fault"
	track_script {
		check_nginx
	}
}

[root@ka1-centos8 ~]# yum install psmisc -y
[root@ka1-centos8 ~]# cat /etc/keepalived/check_nginx.sh
#!/bin/bash
/usr/bin/killall -0 nginx || systemctl restart nginx

[root@ka1-centos8 ~]# chmod a+x /etc/keepalived/check_nginx.sh

范例: 利用通知脚本,实现切换时，自动重启服务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
vim /etc/keepalived/notify.sh
!/bin/bash
contact='root@localhost'
notify() {
	mailsubject="$(hostname) to be  $1:vip floating"
	mailbody="$(date +'%F %T'):vrrp transition,$(hostname) change to be $1"
	echo $mailbody | mail -s "$mailsubject" $contract
}

case $1 in
master)
	notify master
	systemctl start nginx
	;;
backup)
	notify backup
	systemctl restart nginx
	;;
fault)
	notify fault
	;;
*)
	echo "Usage: $(basename $0) {master|backup|fault}"
esac

实战案例：实现双主模式 Nginx 反向代理的高可用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
#在两个节点都配置nginx反向代理
[root@ka1-centos8 ~]# vim /etc/nginx/nginx.conf
http {
	upstream websrvs {
		server 10.0.0.7:80 weight=1;
		server 10.0.0.17:80 weight-1;
	}
	upstream websrvs2 {
		server 10.0.0.27:80 weight=1;
		server 10.0.0.37:80 weight-1;
	}
	server {
		listen 80;
		server_name www.a.com;
		location /{
			proxy_pass http://webservs/;
		}
	}
	server {
		listen 80;
		server_name www.b.com;
		location /{
			proxy_pass http://webservs2/;
		}
	}
}

#在两个节点都配置实现双主模式的nginx反向代理高可用
[root@ka1-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@localhost
 	}
	notification_email_from kaadmin@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
 	router_id ka1.wang.org #在另一个节点为ka2.wang.org
	vrrp_mcast_group4 224.100.100.100
}

vrrp_script check_nginx {
    script "/etc/keepalived/check_nginx.sh"
    #script "/usr/bin/killall -0 nginx"
    interval 1
    weight -30
    fall 3
    rise 5
    timeout 2
}

vrrp_instance VI_1 {
	state MASTER #在另一个节点为BACKUP
 	interface eth0
 	virtual_router_id 66
 	priority 100 #在另一个节点为80
 	advert_int 1
 	authentication {
 		auth_type PASS
 		auth_pass 123456
 	}
 	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1
 	}
 	track_interface {
 		eth0
 	}
 	notify_master "/etc/keepalived/notify.sh master"
 	notify_backup "/etc/keepalived/notify.sh backup"
 	notify_fault "/etc/keepalived/notify.sh fault"
 	track_script {
 		check_nginx
 	}
}

vrrp_instance VI_2 {
	state BACKUP #在另一个节点为MASTER
 	interface eth0
 	virtual_router_id 88
 	priority 80 #在另一个节点为100
 	advert_int 1
 	authentication {
 		auth_type PASS
 		auth_pass 123456
 	}
 	virtual_ipaddress {
 		10.0.0.20/24 dev eth0 label eth0:2
 	}
 	track_interface {
 		eth0
 	}
 	notify_master "/etc/keepalived/notify.sh master"
 	notify_backup "/etc/keepalived/notify.sh backup"
 	notify_fault "/etc/keepalived/notify.sh fault"
 	track_script {
 		check_nginx
 	}
}

[root@ka1-centos8 ~]# yum install psmisc -y
[root@ka1-centos8 ~]# cat /etc/keepalived/check_nginx.sh
#!/bin/bash
/usr/bin/killall -0 nginx
[root@ka1-centos8 ~]# chmod a+x /etc/keepalived/check_nginx.sh

实战案例：实现 HAProxy 高可用

11

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
#先实现MySQL的双主架构
[root@ka1-centos8 ~]# vim /etc/my.cnf.d/mariadb-server.cnf
[mysqld]
server-id=8
log-bin
auto_increment_offset=1         #开始点
auto_increment_increment=2      #增长幅度

#在ka2第二个节点创建连接MySQL查看同步状态的授权用户
[root@ka2-centos8 ~]# mysql -uroot -p123456
MariaDB [(none)]> grant replication slave on *.* to repluser@'10.0.0.%'
identified by '123456';

#实现MySQL的健康性检测脚本1
[root@ka1-centos8 ~]# vi /etc/keepalived/check_mysql.sh
#!/bin/bash
slave_is=( $(mysql -uroot -p123456 -h10.0.0.18 -e "show slave status\G" | grep "Slave_.*_Running:" | awk '{print $2}') )
if [ "${slave_is[0]}" = "Yes" -a "${slave_is[1]}" = "Yes" ];then
	exit 0
else
	exit 1
fi

#实现MySQL的健康性检测脚本2
[root@ka1-centos8 ~]# vi /etc/keepalived/check_mysql.sh
mysqladmin -uroot -p123456  ping &> /dev/null

#实现MySQL的健康性检测脚本3
[root@ka1-centos8 ~]# vi /etc/keepalived/check_mysql.sh
mysql  -uroot -p123456 -e 'status' &> /dev/null

#实现MySQL的健康性检测脚本4
[root@ka1-centos8 ~]# vi /etc/keepalived/check_mysql.sh
systemctl is-active mariadb &> /dev/null

#配置keepalived调用上面脚本
[root@ka1-centos8 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
	notification_email {
		root@localhost
	}
	notification_email_from kaadmin@localhost
	smtp_server 127.0.0.1
	smtp_connect_timeout 30
	router_id ka1.wang.org #在另一个节点为ka2.wang.org
	vrrp_mcast_group4 224.0.100.100
}

vrrp_script check_mysql { #只需在第一个节点上实现脚本
    script "/etc/keepalived/check_mysql.sh"
    interval 1
    weight -30
    fall 3
    rise 2
    timeout 2
}

vrrp_instance VI_1 {
	state MASTER #在另一个节点为BACKUP
	interface eth0
	virtual_router_id 66
	priority 100 #在另一个节点为80
	advert_int 1
	authentication {
		auth_type PASS
		auth_pass 123456
	}
	virtual_ipaddress {
		10.0.0.10/24 dev eth0 label eth0:1
 	}
 	track_interface {
 		eth0
 	}
 	notify_master "/etc/keepalived/notify.sh master"
 	notify_backup "/etc/keepalived/notify.sh backup"
 	notify_fault "/etc/keepalived/notify.sh fault"
   	track_script {
    	check_mysql #只需在第一个节点上实现脚本
    }
}

实战案例：实现 Zabbix Server 的高可用

12

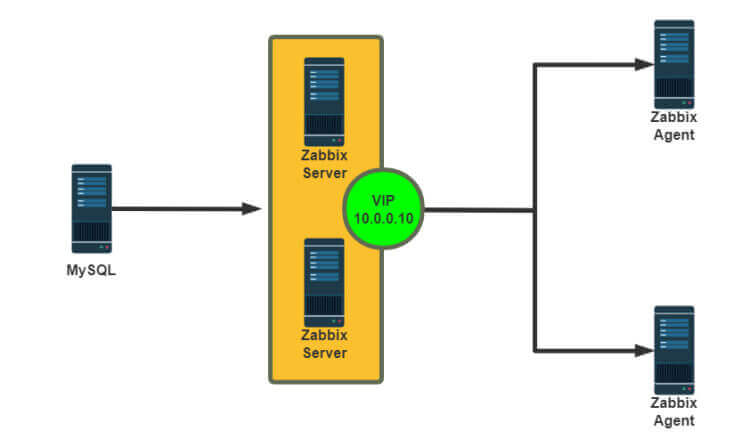

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
#在两个Zabbix Server 使用下面相同的配置
[root@ka1 ~]# grep -i SourceIP= /etc/zabbix/zabbix_server.conf
SourceIP=10.0.0.10

[root@ka1 ~]# grep -i '^server=' /etc/zabbix/zabbix_agentd.conf
Server=127.0.0.1,10.0.0.10

[root@ka1 ~]# systemctl enable zabbix-server.service
[root@ka2 ~]# systemctl disable zabbix-server.service

#keepalived相关配置
#ka1节点配置
[root@ka1 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    notification_email {
        root@wangxiaochun.com
    }
    notification_email_from 29308620@qq.com
    smtp_server 127.0.0.1
    smtp_connect_timeout 30
    router_id ka1.wang.org
    vrrp_skip_check_adv_addr
    #vrrp_strict
    vrrp_garp_interval 0
    vrrp_gna_interval 0
    vrrp_mcast_group4 230.6.6.6
}

#指定检测脚本
vrrp_script check_zabbix_server{
    script "/usr/bin/killall -0 zabbix_server"
    interval 1
    weight -30
    fall 2
    rise 2
    timeout 2
}
include /etc/keepalived/conf.d/*.conf

[root@ka1 ~]# cat /etc/keepalived/conf.d/vip_zabbix.conf
vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 66
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.10/24 dev eth0 label eth0:1
    }
    #notify_master "systemctl start zabbix-server"
    #notify_backup "systemctl stop zabbix-server"
    track_script {
        check_zabbix_server
    }
}

#ka2节点框配置
[root@ka2 ~]# cat /etc/keepalived/conf.d/vip_zabbix.conf
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 66
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 123456
    }
    virtual_ipaddress {
        10.0.0.10/24 dev eth0 label eth0:1
    }
    notify_master "systemctl start zabbix-server"
    notify_backup "systemctl stop zabbix-server"
    track_script {
    #   check_zabbix_server #在ka2节点不能启用脚本,否则会导致ka2节点也降低优先级,从而切换失败
    }
}

综合实战案例

13

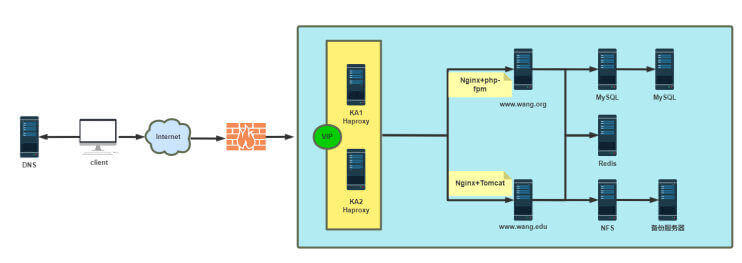

  • 编译安装 HAProxy 新版 LTS 版本，编译安装 Keepalived
  • 开启HAProxy多线程，线程数与CPU核心数保持一致,并绑定CPU核心
  • 因业务较多避免配置文件误操作，需要按每业务一个配置文件并统一保存至/etc/haproxy/conf.d 目录中
  • 基于ACL实现单IP多域名负载功能,两个域名的业务: www.wang.org 和 www.wang.net
  • 实现MySQL主从复制，并通过HAProxy对MySQL进行四层反向代理
  • 对 www.wang.net 域名基于HAProxy+Nginx+PHP+MySQL+Redis，实现phpMyadmin的PHP应用,并实现Session会话保持统一保存到Redis
  • 对 www.wang.org 域名基于HAProxy+Nginx+Tomcat+MySQL，并实现Jpress的JAVA应用
