案例描述

通过本模块课程学习，主要掌握以下内容：

了解Python语法、python-keystoneclient库和OpenStack APIs。

能够使用Python编写代码，利用python-keystoneclient库查询Keystone项目。

了解使用OpenStack Python SDK进行Python运维脚本开发。

（4）掌握用户、镜像、实例类型等管理代码Python语法编写方法。

案例一：Python开发环境准备

任务目标

了解python-keystoneclient库。
了解Python语法。
使用Python编写代码，利用python-keystoneclient库查询Keystone项目。

案例准备

节点规划见表1。

表1节点规划

IP 主机名 节点
172.128.11.18 controller OpenStack控制节点

使用all-in-one云主机进行实验，安装Python3环境，并导入相应的依赖包。

案例实施

查看Python版本，命令如下:

1
2
3
4
5
6
[root@controller ~]# ls
 Python-api.tar
通过里面的yum源安装python3

[root@ controller ~]# python3 --version
Python 3.6.8

使用提供的whl文件安装依赖，命令如下：

1
2
3
4
5
6
[root@controller ~]# cd Python-api
# pip3 install certifi-2019.11.28-py2.py3-none-any.whl
# pip3 install urllib3-1.25.11-py3-none-any.whl
# pip3 install idna-2.8-py2.py3-none-any.whl
# pip3 install chardet-3.0.4-py2.py3-none-any.whl
# pip3 install requests-2.24.0-py2.py3-none-any.whl

安装之后可以使用命令查看是否被成功安装，命令如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
[root@controller ~]# pip3 list
Package            Version
------------------ ----------
appdirs            1.4.4
certifi            2019.11.28
cffi               1.15.0
chardet            3.0.4
charset-normalizer 2.0.12
cryptography       36.0.1
decorator          5.1.1
dogpile.cache      1.1.5
idna               2.8
importlib-metadata 4.8.3
iso8601            1.0.2
jmespath           0.10.0
jsonpatch          1.32
jsonpointer        2.2
keystoneauth1      4.5.0
munch              2.5.0
netifaces          0.11.0
openstacksdk       0.61.0
os-service-types   1.7.0
pbr                5.8.1
pip                21.3.1
pycparser          2.21
PyYAML             6.0
requests           2.24.0
requestsexceptions 1.4.0
setuptools         59.6.0
six                1.16.0
stevedore          3.5.0
typing_extensions  4.1.1
urllib3            1.25.11
zipp               3.6.0

至此，基本环境安装完毕。

案例二：通过RESTful编写Python运维

任务目标

了解OpenStack APIs。
了解用户、镜像、实例类型等管理代码Python语法编写方法。
在OpenStack云中，可以使用OpenStack API来启动服务器云主机，创建镜像、给实例和镜像分配元数据、创建存储容器和对象以及完成其他相关的动作。
OpenStack APIs 参考官方文档https://docs.openstack.org/train/api/。针对每个服务都提供了Restful 接口说明。以下给出使用Python调用APIs实现OpenStack运维。

案例准备

沿用案例一的all-in-one云主机环境进行实验。

案例实施

登录OpenStack平台，可以查看APIs的网站与端口。

1
2
[root@controller ~]# source /etc/keystone/admin-openrc.sh
[root@controller ~]# openstack endpoint list -c "Service Name"  -c "Enabled"  -c "URL"

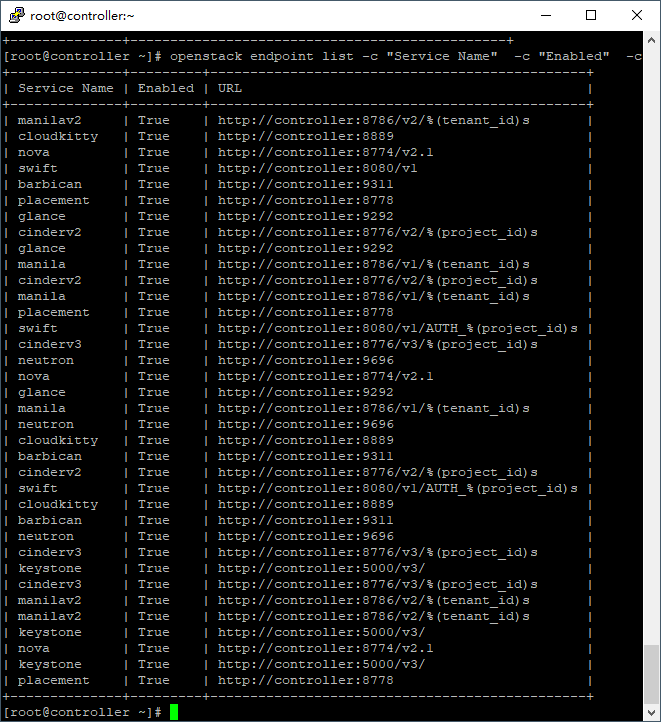

查询Endpoint接口如图1所示：

73

图1

认证服务：用户管理

接口说明

接口官网：https://docs.openstack.org/api-ref/identity/。
当前版本为V3.0.网站为：https://docs.openstack.org/api-ref/identity/v3/index.html
Identity服务生成访问OpenStack服务REST API的认证令牌。客户端通过向身份验证服务提供有效凭据来获取此令牌（Token）和其他服务API的URL端点。
每次向OpenStack服务请求REST API时，都需要在X-Auth-Token请求头中提供自己的认证令牌（Token）。
和大多数OpenStack项目一样，OpenStack Identity通过基于角色访问控制（RBAC）的方法定义策略规则来保护API。
Identity服务配置文件设置存储这些规则的JSON策略文件的名称和位置。
V3 API为所有GET请求实现了HEAD。 每个HEAD请求包含与对应的GET API相同的报头和HTTP状态代码。

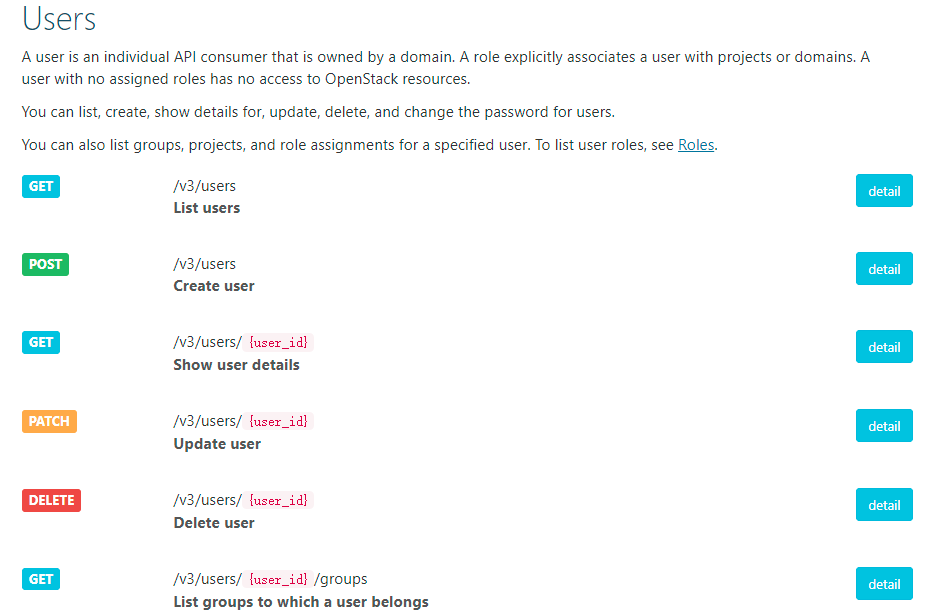

以下以用户管理的Python实现案例，展示如何调用认证服务的APIs。具体APIs参考如下地址（如图2所示）：
https://docs.openstack.org/api-ref/identity/v3/index.html#users

74
图2
以下展示User增删查改的管理Python实现代码。
创建用户接口：POST /v3/users
请求参数见表2：
表2 请求参数

Name In Type Description
user body object 用户
default_project_id (Optional) body string 项目ID
domain_id (Optional) body string 区域ID
federated (Optional) body list 用户联邦列表
enabled (Optional) body boolean 是否启用
name body string 用户名称
password (Optional) body string 密码
extra (Optional) body string 额外信息
options (Optional) body object 选项

创建用户body json案例如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
{
    "user": {
        "default_project_id": "263fd9",
        "domain_id": "1789d1",
        "enabled": true,
        "federated": [
            {
                "idp_id": "efbab5a6acad4d108fec6c63d9609d83",
                "protocols": [
                    {
                        "protocol_id": "mapped",
                        "unique_id": "test@example.com"
                    }
                ]
            }
        ],
        "name": "James Doe",
        "password": "secretsecret",
        "description": "James Doe user",
        "email": "jdoe@example.com",
        "options": {
            "ignore_password_expiry": true
        }
    }
}

其他接口参数基本一致，可以查看每个接口的request与response的数据格式。

代码实现

创建apis_user_manager.py文件实现，用户的创建、查找、删除、更新。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
# Copyright 2021~2022 The Cloud Computing support Teams of ChinaSkills.
import requests,json,time
import logging
#-----------logger-----------
#get logger
logger = logging.getLogger(__name__)
# level
logger.setLevel(logging.DEBUG)
# format
format = logging.Formatter('%(asctime)s %(message)s')
# to console
stream_handler  = logging.StreamHandler()
stream_handler .setFormatter(format)
logger.addHandler(stream_handler )
#-----------logger-----------
def get_auth_token(controller_ip, domain, user, password):
    '''
    :param controller_ip: openstack master ip address
    :param domain: current user's domain
    :param user: user name
    :param password: user password
    :return: keystoen auth Token for current user.
    '''
    try:
        url = f"http://{controller_ip}:5000/v3/auth/tokens"
        body = {
                    "auth": {
                        "identity": {
                            "methods": [
                                "password"
                            ],
                            "password": {
                                "user": {
                                    "domain": {
                                        "name": domain
                                    },
                                    "name": user,
                                    "password": password
                                }
                            }
                        },
                        "scope": {
                            "project": {
                                "domain": {
                                    "name": domain
                                },
                                "name": user
                            }
                        }
                    }
                }
        headers = {
            "Content-Type": "application/json",
        }
        print(body)
        Token = requests.post(url, data=json.dumps(body), headers=headers).headers['X-Subject-Token']
        headers = {
            "X-Auth-Token": Token
        }
        logger.debug(f"获取Token值：{str(Token)}")
        return headers
    except Exception as e:
        logger.error(f"获取Token值失败，请检查访问云主机控制节点IP是否正确？输出错误信息如下：{str(e)}")
        exit(0)
#用户管理
# https://docs.openstack.org/api-ref/identity/v3/index.html#users
class user_manager:
    def __init__(self, handers: dict, resUrl: str):
        self.headers = handers
        self.resUrl = resUrl
    #      POST  /v3/users  Create user
    def create_users(self, user_name, password:str, desc:str):
        """
        create a user with name and password and description.
        :param user_name:
        :param password:
        :param desc:
        :return:
        """
        body = {
            "user": {
                "name": user_name,
                "password": password,
                "description": desc,
            }
        }
        status_code = requests.post(self.resUrl, data=json.dumps(body), headers=self.headers).text
        logger.debug(f"返回状态:{str(status_code)}")
        return status_code
    # /v3/users    # List all users
    def get_users(self):
        """
        :return:
        """
        status_code =  requests.get(self.resUrl, headers=self.headers).text
        logger.debug(f"返回状态:{str(status_code)}")
        return status_code
    def get_user_id(self, user_name):
        """
        get user id by name.
        :param user_name:
        :return:
        """
        result = json.loads(requests.get(self.resUrl, headers=self.headers).text)
        user_name = user_name
        for item in result['users']:
            if item['name'] == user_name:
                return item['id']
        return "NONE"
    def get_user(self, id:str):
        """
        get a flavor by id.
        :return:
        """
        api_url = self.resUrl + "/"+id
        result = json.loads(requests.get(api_url, headers=self.headers).text)
        logger.debug(f"返回信息:{str(result)}")
        return result
    def delete_user(self, id:str):
        """
         delete a user by id.
         :return:
         """
        api_url = self.resUrl + "/" + id
        response = requests.delete(api_url, headers=self.headers)
        # 204 - No ContentThe server has fulfilled the request.
        if response.status_code == 204:
            return {"User itemDeletedSuccess": response.status_code}
        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result
        # http://192.168.200.226:8774/v2.1/ get apis version infomation.
    def update_User_password(self, id: str, original_password: str, new_password : str):
        """
        update a flavor desc by id.
        :return:
        """
        self.headers['Content-Type'] = "application/json"
        body = {
            "user": {
                "password": new_password,
                "original_password": original_password
            }
        }
        api_url = self.resUrl + "/" + id + "/password"
        response = requests.post(api_url, data=json.dumps(body), headers=self.headers)
        # Normal response codes: 204 without return text
        if response.status_code == 204 :
            return {"item Update Password Success": response.status_code}
        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result
if __name__ == '__main__':
    # openstack allinone （controller ) credentials
    # host ip address
    controller_ip = "192.168.200.226"
    # domain name
    domain = "demo"
    # user name
    user = "admin"
    # user password
    password = "000000"
    headers = get_auth_token(controller_ip,domain,user,password)
    print("headers:", headers)
    #get all user
    user_m = user_manager(headers, f"http://{controller_ip}:5000/v3/users")

代码验证

① 登录通过账号密码方式：使用get_auth_token()方法，通过该方法获取Token值。
② 封装了user_manager类，通过python request库实现对API的网络访问，实现对用户的增删查改操作。

  • 创建：POST /v3/users
  • 查询：get /v3/users
  • 删除：delete /v3/users/id
  • 更改密码：/v3/users/id/password”

具体可以通过官网的API说明。
③ 执行user_manager的每个方法进行代码测试，通过openstack user命令行或Dashboard界面进行研究者。

修改apis_user_manager.py的if name == ‘__main__’:函数中OpenStack的IP、domain、user、password，执行apis_user_manager.py，进行查询所有、创建、根据ID查询、更新密码和删除验证。在apis_user_manager.py的if name == ‘main‘最后添加如下代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
#get all user
user_m = user_manager(headers, f"http://{controller_ip}:5000/v3/users")
# 1 查询所有
users = user_m.get_users()
print("查询所有users:", users)
# 2 创建
user = user_m.create_users("user_demo", "passw0rd","A user created by python code.")
print("创建用户:", user)
# get user id by name
id = user_m.get_user_id("user_demo")
print("User user_demo Id is:", id)
#3. 使用ID查询
user = user_m.get_user(id)
print(f"查询{id}用户:", user)
# 4. 更新密码
result = user_m.update_User_password(id, "passw0rd", "8assw52d")
print(f"更新密码{id}用户:", result)
#5. 删除新建用户
result = user_m.delete_user(id)
print(f"删除{id}用户:", result)

然后执行apis_user_manager.py，结果如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@controller ~]# python3 apis_user_manager.py
{'auth': {'identity': {'methods': ['password'], 'password': {'user': {'domain': {'name': 'demo'}, 'name': 'admin', 'password': '000000'}}}, 'scope': {'project': {'domain': {'name': 'demo'}, 'name': 'admin'}}}}
2022-03-10 13:24:37,146 获取Token值：gAAAAABiKYoR1bvKz87Qx2H5ULprGbheY3EIWsm6t3ry1St5-B7LFfRddB8VLVwdxY-HSHdMlG-0vcam-UKzfRqHziFXTL7oNPacSfrvk4qiZMqCHKaisI7nETxa9Qrgsd_a0trjCTNWxYgfalGLpBjSfNA4ccCdw_3i3LocRWY2OcJQ3ccPM5w
headers: {'X-Auth-Token': 'gAAAAABiKYoR1bvKz87Qx2H5ULprGbheY3EIWsm6t3ry1St5-B7LFfRddB8VLVwdxY-HSHdMlG-0vcam-UKzfRqHziFXTL7oNPacSfrvk4qiZMqCHKaisI7nETxa9Qrgsd_a0trjCTNWxYgfalGLpBjSfNA4ccCdw_3i3LocRWY2OcJQ3ccPM5w'}
2022-03-10 13:24:38,511 返回状态:{"users": [{"name": "admin", "links": {"self": "http://172.128.11.18:5000/v3/users/89f8027475294689ae6c0183fa35bf5a"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "options": {}, "default_project_id": "0b6f2d0be1d342e09edc31dc841db7a5", "id": "89f8027475294689ae6c0183fa35bf5a", "password_expires_at": null}, {"password_expires_at": null, "name": "demo", "links": {"self": "http://172.128.11.18:5000/v3/users/df883f8abb124254a4e04138e92ebad6"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "df883f8abb124254a4e04138e92ebad6", "options": {}}, {"password_expires_at": null, "name": "glance", "links": {"self": "http://172.128.11.18:5000/v3/users/5f149fe240114fb5ae43e6d9ea3585c9"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "5f149fe240114fb5ae43e6d9ea3585c9", "options": {}}, {"password_expires_at": null, "name": "placement", "links": {"self": "http://172.128.11.18:5000/v3/users/c12e3ae6719f4145b45890b4f32b1bde"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "c12e3ae6719f4145b45890b4f32b1bde", "options": {}}, {"password_expires_at": null, "name": "nova", "links": {"self": "http://172.128.11.18:5000/v3/users/214fedb287114f2d8bf09bbb665369bd"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "214fedb287114f2d8bf09bbb665369bd", "options": {}}, {"password_expires_at": null, "name": "neutron", "links": {"self": "http://172.128.11.18:5000/v3/users/a22d0df83e564c17a618429a136aa46d"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "a22d0df83e564c17a618429a136aa46d", "options": {}}, {"password_expires_at": null, "name": "cinder", "links": {"self": "http://172.128.11.18:5000/v3/users/70fd527b01f141d091d240b17ffa7532"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "70fd527b01f141d091d240b17ffa7532", "options": {}}, {"password_expires_at": null, "name": "swift", "links": {"self": "http://172.128.11.18:5000/v3/users/38fca0a11172451ebd4fdd34bab4a62c"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "38fca0a11172451ebd4fdd34bab4a62c", "options": {}}, {"password_expires_at": null, "name": "heat", "links": {"self": "http://172.128.11.18:5000/v3/users/c099073d62754032937dfd422e5253a1"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "c099073d62754032937dfd422e5253a1", "options": {}}, {"password_expires_at": null, "name": "heat_domain_admin", "links": {"self": "http://172.128.11.18:5000/v3/users/ff8b9ec030ba4de8a7b4fd847c94c3c3"}, "domain_id": "e62a73d6033d49e89a0fd711a87f7d7b", "enabled": true, "id": "ff8b9ec030ba4de8a7b4fd847c94c3c3", "options": {}}, {"password_expires_at": null, "name": "ceilometer", "links": {"self": "http://172.128.11.18:5000/v3/users/d35395e5ae554a5ea0fb5c2b5dbb2ba7"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "d35395e5ae554a5ea0fb5c2b5dbb2ba7", "options": {}}, {"password_expires_at": null, "name": "gnocchi", "links": {"self": "http://172.128.11.18:5000/v3/users/90deb816e8ee4ff7ae28d342f6074127"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "90deb816e8ee4ff7ae28d342f6074127", "options": {}}, {"password_expires_at": null, "name": "aodh", "links": {"self": "http://172.128.11.18:5000/v3/users/761b461915464665a29780738d9bb5fa"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "761b461915464665a29780738d9bb5fa", "options": {}}, {"password_expires_at": null, "name": "zun", "links": {"self": "http://172.128.11.18:5000/v3/users/2d8554f24c04452c8ffa9aa216a7c484"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "2d8554f24c04452c8ffa9aa216a7c484", "options": {}}, {"password_expires_at": null, "name": "kuryr", "links": {"self": "http://172.128.11.18:5000/v3/users/e9227d1e10c24ab2872b549157b4d376"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "e9227d1e10c24ab2872b549157b4d376", "options": {}}, {"password_expires_at": null, "name": "octavia", "links": {"self": "http://172.128.11.18:5000/v3/users/6a0958e6e55e4513a5f2451db007a2cc"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "6a0958e6e55e4513a5f2451db007a2cc", "options": {}}, {"password_expires_at": null, "name": "manila", "links": {"self": "http://172.128.11.18:5000/v3/users/77bba8c0d46c44578b8831e3d704ca97"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "77bba8c0d46c44578b8831e3d704ca97", "options": {}}, {"password_expires_at": null, "name": "cloudkitty", "links": {"self": "http://172.128.11.18:5000/v3/users/9f7da13262e44bf58c1bf29ee0318c81"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "9f7da13262e44bf58c1bf29ee0318c81", "options": {}}, {"password_expires_at": null, "name": "barbican", "links": {"self": "http://172.128.11.18:5000/v3/users/38ac5cab65974983b6a01be246e665a9"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "38ac5cab65974983b6a01be246e665a9", "options": {}}], "links": {"self": "http://172.128.11.18:5000/v3/users", "previous": null, "next": null}}
查询所有users: {"users": [{"name": "admin", "links": {"self": "http://172.128.11.18:5000/v3/users/89f8027475294689ae6c0183fa35bf5a"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "options": {}, "default_project_id": "0b6f2d0be1d342e09edc31dc841db7a5", "id": "89f8027475294689ae6c0183fa35bf5a", "password_expires_at": null}, {"password_expires_at": null, "name": "demo", "links": {"self": "http://172.128.11.18:5000/v3/users/df883f8abb124254a4e04138e92ebad6"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "df883f8abb124254a4e04138e92ebad6", "options": {}}, {"password_expires_at": null, "name": "glance", "links": {"self": "http://172.128.11.18:5000/v3/users/5f149fe240114fb5ae43e6d9ea3585c9"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "5f149fe240114fb5ae43e6d9ea3585c9", "options": {}}, {"password_expires_at": null, "name": "placement", "links": {"self": "http://172.128.11.18:5000/v3/users/c12e3ae6719f4145b45890b4f32b1bde"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "c12e3ae6719f4145b45890b4f32b1bde", "options": {}}, {"password_expires_at": null, "name": "nova", "links": {"self": "http://172.128.11.18:5000/v3/users/214fedb287114f2d8bf09bbb665369bd"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "214fedb287114f2d8bf09bbb665369bd", "options": {}}, {"password_expires_at": null, "name": "neutron", "links": {"self": "http://172.128.11.18:5000/v3/users/a22d0df83e564c17a618429a136aa46d"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "a22d0df83e564c17a618429a136aa46d", "options": {}}, {"password_expires_at": null, "name": "cinder", "links": {"self": "http://172.128.11.18:5000/v3/users/70fd527b01f141d091d240b17ffa7532"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "70fd527b01f141d091d240b17ffa7532", "options": {}}, {"password_expires_at": null, "name": "swift", "links": {"self": "http://172.128.11.18:5000/v3/users/38fca0a11172451ebd4fdd34bab4a62c"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "38fca0a11172451ebd4fdd34bab4a62c", "options": {}}, {"password_expires_at": null, "name": "heat", "links": {"self": "http://172.128.11.18:5000/v3/users/c099073d62754032937dfd422e5253a1"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "c099073d62754032937dfd422e5253a1", "options": {}}, {"password_expires_at": null, "name": "heat_domain_admin", "links": {"self": "http://172.128.11.18:5000/v3/users/ff8b9ec030ba4de8a7b4fd847c94c3c3"}, "domain_id": "e62a73d6033d49e89a0fd711a87f7d7b", "enabled": true, "id": "ff8b9ec030ba4de8a7b4fd847c94c3c3", "options": {}}, {"password_expires_at": null, "name": "ceilometer", "links": {"self": "http://172.128.11.18:5000/v3/users/d35395e5ae554a5ea0fb5c2b5dbb2ba7"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "d35395e5ae554a5ea0fb5c2b5dbb2ba7", "options": {}}, {"password_expires_at": null, "name": "gnocchi", "links": {"self": "http://172.128.11.18:5000/v3/users/90deb816e8ee4ff7ae28d342f6074127"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "90deb816e8ee4ff7ae28d342f6074127", "options": {}}, {"password_expires_at": null, "name": "aodh", "links": {"self": "http://172.128.11.18:5000/v3/users/761b461915464665a29780738d9bb5fa"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "761b461915464665a29780738d9bb5fa", "options": {}}, {"password_expires_at": null, "name": "zun", "links": {"self": "http://172.128.11.18:5000/v3/users/2d8554f24c04452c8ffa9aa216a7c484"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "2d8554f24c04452c8ffa9aa216a7c484", "options": {}}, {"password_expires_at": null, "name": "kuryr", "links": {"self": "http://172.128.11.18:5000/v3/users/e9227d1e10c24ab2872b549157b4d376"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "e9227d1e10c24ab2872b549157b4d376", "options": {}}, {"password_expires_at": null, "name": "octavia", "links": {"self": "http://172.128.11.18:5000/v3/users/6a0958e6e55e4513a5f2451db007a2cc"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "6a0958e6e55e4513a5f2451db007a2cc", "options": {}}, {"password_expires_at": null, "name": "manila", "links": {"self": "http://172.128.11.18:5000/v3/users/77bba8c0d46c44578b8831e3d704ca97"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "77bba8c0d46c44578b8831e3d704ca97", "options": {}}, {"password_expires_at": null, "name": "cloudkitty", "links": {"self": "http://172.128.11.18:5000/v3/users/9f7da13262e44bf58c1bf29ee0318c81"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "9f7da13262e44bf58c1bf29ee0318c81", "options": {}}, {"password_expires_at": null, "name": "barbican", "links": {"self": "http://172.128.11.18:5000/v3/users/38ac5cab65974983b6a01be246e665a9"}, "domain_id": "720f960530dc4e1982ebc7bdfd261f86", "enabled": true, "id": "38ac5cab65974983b6a01be246e665a9", "options": {}}], "links": {"self": "http://172.128.11.18:5000/v3/users", "previous": null, "next": null}}
创建用户: {"user": {"description": "A user created by python code.", "name": "user_demo", "domain_id": "default", "enabled": true, "links": {"self": "http://172.128.11.18:5000/v3/users/f0a881341365462a930381b82ef378ff"}, "options": {}, "id": "f0a881341365462a930381b82ef378ff", "password_expires_at": null}}
2022-03-10 13:24:41,724 返回状态:{"user": {"description": "A user created by python code.", "name": "user_demo", "domain_id": "default", "enabled": true, "links": {"self": "http://172.128.11.18:5000/v3/users/f0a881341365462a930381b82ef378ff"}, "options": {}, "id": "f0a881341365462a930381b82ef378ff", "password_expires_at": null}}
User user_demo Id is: f0a881341365462a930381b82ef378ff
查询f0a881341365462a930381b82ef378ff用户: {'user': {'description': 'A user created by python code.', 'links': {'self': 'http://172.128.11.18:5000/v3/users/f0a881341365462a930381b82ef378ff'}, 'enabled': True, 'id': 'f0a881341365462a930381b82ef378ff', 'password_expires_at': None, 'options': {}, 'domain_id': 'default', 'name': 'user_demo'}}
2022-03-10 13:24:44,021 返回信息:{'user': {'description': 'A user created by python code.', 'links': {'self': 'http://172.128.11.18:5000/v3/users/f0a881341365462a930381b82ef378ff'}, 'enabled': True, 'id': 'f0a881341365462a930381b82ef378ff', 'password_expires_at': None, 'options': {}, 'domain_id': 'default', 'name': 'user_demo'}}
更新密码f0a881341365462a930381b82ef378ff用户: {'item Update Password Success': 204}
删除f0a881341365462a930381b82ef378ff用户: {'User itemDeletedSuccess': 204}
Process finished with exit code 0

计算服务：实例类型管理

接口说明

计算服务的API官网：
https://docs.openstack.org/api-guide/compute/index.html
Nova项目提供了RESTful HTTP服务：OpenStack Compute API。这些API提供了对计算资源的大规模可伸缩、随需应变、自服务访问能力。
API版本：
在Mitaka发布之后，每个Nova部署都有以下服务端点：

  • / -可用版本列表
  • /v2 -计算API的第一个版本，使用扩展（称之为计算API v2.0）
  • /v2.1 -相同的API，只是使用了微版本

文档只要给出v2.1 API接口说明。
以下以主机类型（flavors）管理为案例，实现Python代码。具体APIs说明参见：https://docs.openstack.org/api-ref/compute/

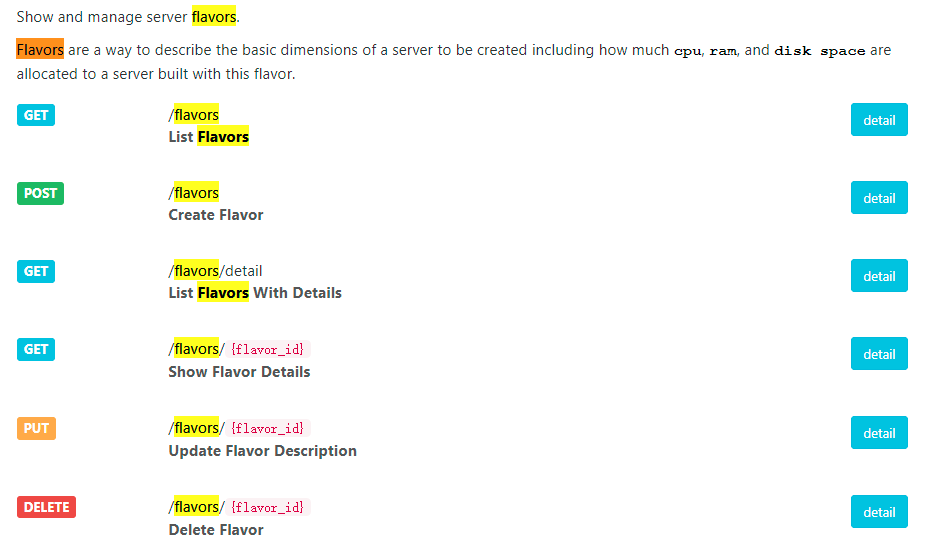

接口清单如图3所示，涉及查询（Get）、创建（POST）、更新（PUT）与删除（DELETE）。

75

图3
具体参看：
https://docs.openstack.org/api-ref/compute/?expanded=list-flavors-detail,list-flavors-with-details-detail
创建Flavor使用接口：POST /flavors。创建flavor需要云管理员（administrators），调用正常响应码为200，错误响应码为badRequest(400), unauthorized(401), forbidden(403), conflict(409)。
请求（Request）参数见表3：
表3 请求（Request）参数说明

名称 位置 类型 描述
flavor body object Flavor一种主机类型。
name body string 名称。
description (Optional) body string 描述可选（限制65535字符），自V2.55版本开始。
id (Optional) body string Flavor的ID，缺省为uuid。
ram body integer 内存大小（单位MiB）。
disk body integer 磁盘大小（单位GiB）。.
vcpus body integer 虚拟CPU个数(vCPUs)。
OS-FLV-EXT-DATA:ephemeral (Optional) body integer 临时磁盘的大小（单位GiB）。
swap (Optional) body integer 交换磁盘大小，单位为MiB。
rxtx_factor (Optional) body float 如果网络后端支持QOS扩展，将在端口上设置的接收/发送因子（作为一个浮动）。否则将被忽略。它的默认值是1.0。
os-flavor-access:is_public (Optional) body boolean 主机类型是公用还是项目专有？默认公用。

响应（Response）说明见表4：
表4 响应（Response）说明

名称 位置 类型 描述
flavor body object Flavor一种主机类型。
name body string 名称。
description body string 描述可选（限制65535字符），自V2.55版本开始。
id body string Flavor的ID，缺省为uuid。
ram body integer 内存大小（单位MiB）。
disk body integer 磁盘大小（单位GiB）。.
vcpus body integer 虚拟CPU个数(vCPUs)。
links body array 资源链接。
OS-FLV-EXT-DATA:ephemeral body integer 交换磁盘大小，单位为MiB。
OS-FLV-DISABLED:disabled (Optional) body boolean 是否禁用。通常只对管理用户可见。
swap body integer 交换磁盘大小，单位为MiB。
rxtx_factor body float 如果网络后端支持QOS扩展，将在端口上设置的接收/发送因子（作为一个浮动）。否则将被忽略。它的默认值是1.0。
os-flavor-access:is_public body boolean 主机类型是公用还是项目专有？默认公用。
extra_specs (Optional) body object 额外规格（key、value键值对），自V2.61。

创建Flavor的body json案例：

Example Create Flavor (v2.55) :

1
2
3
4
5
6
7
8
9
10
11
{
    "flavor": {
        "name": "test_flavor",
        "ram": 1024,
        "vcpus": 2,
        "disk": 10,
        "id": "10",
        "rxtx_factor": 2.0,
        "description": "test description"
    }
}

Example Create Flavor (v2.75) :

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
    "flavor": {
        "OS-FLV-DISABLED:disabled": false,
        "disk": 10,
        "OS-FLV-EXT-DATA:ephemeral": 0,
        "os-flavor-access:is_public": true,
        "id": "10",
        "links": [
            {
                "href": "http://openstack.example.com/v2/6f70656e737461636b20342065766572/flavors/10",
                "rel": "self"
            },
            {
                "href": "http://openstack.example.com/6f70656e737461636b20342065766572/flavors/10",
                "rel": "bookmark"
            }
        ],
        "name": "test_flavor",
        "ram": 1024,
        "swap": 0,
        "rxtx_factor": 2.0,
        "vcpus": 2,
        "description": "test description",
        "extra_specs": {}
    }
}

其他接口参数基本一致，可以查看每个接口的request与response的数据格式。

代码实现

创建apis_flavor_manager.py文件实现，主机类型创建、查找、删除、更新。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
# Copyright 2021~2022 The Cloud Computing support Teams of ChinaSkills.
import requests,json,time
import logging
#-----------logger-----------
#get logger
logger = logging.getLogger(__name__)
# level
logger.setLevel(logging.DEBUG)
# format
format = logging.Formatter('%(asctime)s %(message)s')
# to console
stream_handler  = logging.StreamHandler()
stream_handler .setFormatter(format)
logger.addHandler(stream_handler )
#-----------logger-----------
def get_auth_token(controller_ip, domain, user, password):
    '''
    :param controller_ip: openstack master ip address
    :param domain: current user's domain
    :param user: user name
    :param password: user password
    :return: keystoen auth Token for current user.
    '''
    try:
        url = f"http://{controller_ip}:5000/v3/auth/tokens"
        body = {
                    "auth": {
                        "identity": {
                            "methods": [
                                "password"
                            ],
                            "password": {
                                "user": {
                                    "domain": {
                                        "name": domain
                                    },
                                    "name": user,
                                    "password": password
                                }
                            }
                        },
                        "scope": {
                            "project": {
                                "domain": {
                                    "name": domain
                                },
                                "name": user
                            }
                        }
                    }
                }
        headers = {
            "Content-Type": "application/json",
        }
        print(body)
        Token = requests.post(url, data=json.dumps(body), headers=headers).headers['X-Subject-Token']
        headers = {
            "X-Auth-Token": Token
        }
        logger.debug(f"获取Token值：{str(Token)}")
        return headers
    except Exception as e:
        logger.error(f"获取Token值失败，请检查访问云主机控制节点IP是否正确？输出错误信息如下：{str(e)}")
        exit(0)
class flavor_manager:
    def __init__(self,handers:dict,resUrl:str):
        self.headers=handers
        self.resUrl=resUrl
    #创建flavor类型
    def create_flavor(self,flavor_name:str,ram,vcpus,disk,id):
        """
        :param flavor_name:
        :param ram:
        :param vcpus:
        :param disk:
        :param id:
        :return status_code:
        """
        self.headers['Content-Type']="application/json"
        body={
            "flavor":{
                "name":flavor_name,
                "ram":ram,
                "vcpus":vcpus,
                "disk":disk,
                "id":id,
            }
        }
        logger.debug(f"创建flavor请求body:{str(body)}")
        status_code = requests.post(self.resUrl, data=json.dumps(body), headers=self.headers).text
        logger.debug(f"返回状态:{str(status_code)}")
        return  status_code
    #获取all flavors
    def get_flavors(self):
        """
        get all flavors
        :return:
        """
        result = json.loads(requests.get(self.resUrl,headers=self.headers).text)
        logger.debug(f"返回信息:{str(result)}")
        return result
        # 获取flavor_id
    def get_flavor(self, id:str):
        """
        get a flavor by id.
        :return:
        """
        api_url = self.resUrl + "/"+id
        result = json.loads(requests.get(api_url, headers=self.headers).text)
        logger.debug(f"返回信息:{str(result)}")
        return result
    def delete_flavor(self, id:str):
        """
        delete a flavor by id.
        :return:
        """
        api_url = self.resUrl + "/"+id
        response = requests.delete(api_url, headers=self.headers)
        #Normal response codes: 202 without return text
        if response.status_code == 202:
            return {"itemDeletedSuccess": response.status_code}
        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result
    #http://192.168.200.226:8774/v2.1/ get apis version infomation.
    def update_flavor_desc(self, id: str, desc:str):
        """
        update a flavor desc by id.(需要带小版本号）
        :return:
        """
        # 特别注意：This API is available starting with microversion 2.55.
        self.headers['X-OpenStack-Nova-API-Version'] = "2.55"
        self.headers['Content-Type'] = "application/json"
        body = {
            "flavor": {
                "description": desc
            }
        }
        api_url = self.resUrl + "/" + id
        response = requests.put(api_url, data=json.dumps(body), headers=self.headers)
        # Normal response codes: 202 without return text
        if response.status_code == 202:
            return {"itemUpdateSuccess": response.status_code}
        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result
if __name__ == '__main__':
    # openstack allinone （controller ) credentials
    # host ip address
    controller_ip = "192.168.200.226"
    # domain name
    domain = "demo"
    # user name
    user = "admin"
    # user password
    password = "000000"
    headers = get_auth_token(controller_ip,domain,user,password)
    print("headers:", headers)
    #. get token
    flavor_m = flavor_manager(headers, f"http://{controller_ip}:8774/v2.1/flavors")

代码验证

① 登录通过账号密码方式：使用get_auth_token()方法，通过该方法获取Token值。
② 封装了flavor_manager类，通过python request库实现对API的网络访问，实现对用户的增删查改操作。

  • 创建：POST v2.1/flavors
  • 查询：get v2.1/flavors
  • 删除：delete v2.1/flavors/id
  • 更改密码：put v2.1/flavors/id

具体可以通过官网的API说明。
③ 执行flavor_manager的每个方法进行代码测试，通过openstack flavor命令行或Dashboard界面进行研究者。

修改apis_flavor_manager.py的if name == ‘__main__’:函数中OpenStack的IP、domain、user、password，执行apis_flavor_manager.py，进行查询所有、创建、根据ID查询、更新描述。在apis_flavor_manager.py的 name == ‘main‘代码段最后添加如下代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
#. get token
    flavor_m = flavor_manager(headers, f"http://{controller_ip}:8774/v2.1/flavors")
    #1 查所有
    flavors = flavor_m.get_flavors()
    print("查询所有flavors:", flavors)
    #
    #2 如果存在，先删除存在的flavor 100000
    flavor = flavor_m.delete_flavor("100000")
    print("查询id=100000 flavor:", flavor)
    #
    #3 创建 flavor first 100000
    # # id 是唯一的
    status_code = flavor_m.create_flavor(flavor_name="flavor_small", ram=1024, vcpus=1, disk=10, id=100000)
    print("创建主机类型:", status_code)
    #4 查询
    flavor = flavor_m.get_flavor("100000")
    print("查询id=100000 flavor:", flavor)
    #
    #5 更新描述
    status_code = flavor_m.update_flavor_desc("100000",  "Update description skill_china")
    print("更新主机类型描述:", status_code)
    #6 查询
    flavors = flavor_m.get_flavor("100000")
    print("查询所有flavors:", flavors)
    #
    # print("---------finished------------")

通过OpenStack平台查询镜像ID、FlavorID、网络ID，替换以上参数，然后执行apis_flavor_manager.py，结果如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@controller ~]# python3 apis_flavor_manager.py
{'auth': {'identity': {'methods': ['password'], 'password': {'user': {'domain': {'name': 'demo'}, 'name': 'admin', 'password': '000000'}}}, 'scope': {'project': {'domain': {'name': 'demo'}, 'name': 'admin'}}}}
headers: {'X-Auth-Token': 'gAAAAABiKYYsaQyAaxh8lleESSUcUz01l-PYNoHMuptZ8sQLRD5hcSG9nPS6e39n1yVi1P6sPv1dfQVH7YAvJnMik5sEHW0ci7B8IDjrTz5hncpKr9xdqNSBskLAuJFBK49iNIj8w4eBF-LWi-vR454wju7zJiULjeWXdTiIDz6mDOJN1HyBwx4'}
2022-03-10 13:07:59,869 获取Token值：gAAAAABiKYYsaQyAaxh8lleESSUcUz01l-PYNoHMuptZ8sQLRD5hcSG9nPS6e39n1yVi1P6sPv1dfQVH7YAvJnMik5sEHW0ci7B8IDjrTz5hncpKr9xdqNSBskLAuJFBK49iNIj8w4eBF-LWi-vR454wju7zJiULjeWXdTiIDz6mDOJN1HyBwx4
查询所有flavors: {'flavors': [{'id': '1', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/1', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/1', 'rel': 'bookmark'}], 'name': 'm1.tiny'}, {'id': '2', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/2', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/2', 'rel': 'bookmark'}], 'name': 'm1.small'}, {'id': '3', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/3', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/3', 'rel': 'bookmark'}], 'name': 'm1.medium'}]}
2022-03-10 13:08:00,454 返回信息:{'flavors': [{'id': '1', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/1', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/1', 'rel': 'bookmark'}], 'name': 'm1.tiny'}, {'id': '2', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/2', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/2', 'rel': 'bookmark'}], 'name': 'm1.small'}, {'id': '3', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/3', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/3', 'rel': 'bookmark'}], 'name': 'm1.medium'}]}
查询id=100000 flavor: {'itemNotFound': {'message': 'Flavor 100000 could not be found.', 'code': 404}}
2022-03-10 13:08:00,963 返回信息:{'itemNotFound': {'message': 'Flavor 100000 could not be found.', 'code': 404}}
2022-03-10 13:08:00,963 创建flavor请求body:{'flavor': {'name': 'flavor_small', 'ram': 1024, 'vcpus': 1, 'disk': 10, 'id': 100000}}
2022-03-10 13:08:01,516 返回状态:{"flavor": {"links": [{"href": "http://172.128.11.18:8774/v2.1/flavors/100000", "rel": "self"}, {"href": "http://172.128.11.18:8774/flavors/100000", "rel": "bookmark"}], "ram": 1024, "OS-FLV-DISABLED:disabled": false, "os-flavor-access:is_public": true, "rxtx_factor": 1.0, "disk": 10, "id": "100000", "name": "flavor_small", "vcpus": 1, "swap": "", "OS-FLV-EXT-DATA:ephemeral": 0}}
创建主机类型: {"flavor": {"links": [{"href": "http://172.128.11.18:8774/v2.1/flavors/100000", "rel": "self"}, {"href": "http://172.128.11.18:8774/flavors/100000", "rel": "bookmark"}], "ram": 1024, "OS-FLV-DISABLED:disabled": false, "os-flavor-access:is_public": true, "rxtx_factor": 1.0, "disk": 10, "id": "100000", "name": "flavor_small", "vcpus": 1, "swap": "", "OS-FLV-EXT-DATA:ephemeral": 0}}
2022-03-10 13:08:02,041 返回信息:{'flavor': {'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/100000', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/100000', 'rel': 'bookmark'}], 'ram': 1024, 'OS-FLV-DISABLED:disabled': False, 'os-flavor-access:is_public': True, 'rxtx_factor': 1.0, 'disk': 10, 'id': '100000', 'name': 'flavor_small', 'vcpus': 1, 'swap': '', 'OS-FLV-EXT-DATA:ephemeral': 0}}
查询id=100000 flavor: {'flavor': {'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/100000', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/100000', 'rel': 'bookmark'}], 'ram': 1024, 'OS-FLV-DISABLED:disabled': False, 'os-flavor-access:is_public': True, 'rxtx_factor': 1.0, 'disk': 10, 'id': '100000', 'name': 'flavor_small', 'vcpus': 1, 'swap': '', 'OS-FLV-EXT-DATA:ephemeral': 0}}
更新主机类型描述: {'flavor': {'description': 'Update description skill_china', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/100000', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/100000', 'rel': 'bookmark'}], 'ram': 1024, 'OS-FLV-DISABLED:disabled': False, 'os-flavor-access:is_public': True, 'rxtx_factor': 1.0, 'disk': 10, 'id': '100000', 'name': 'flavor_small', 'vcpus': 1, 'swap': '', 'OS-FLV-EXT-DATA:ephemeral': 0}}
2022-03-10 13:08:02,522 返回信息:{'flavor': {'description': 'Update description skill_china', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/100000', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/100000', 'rel': 'bookmark'}], 'ram': 1024, 'OS-FLV-DISABLED:disabled': False, 'os-flavor-access:is_public': True, 'rxtx_factor': 1.0, 'disk': 10, 'id': '100000', 'name': 'flavor_small', 'vcpus': 1, 'swap': '', 'OS-FLV-EXT-DATA:ephemeral': 0}}
查询所有flavors: {'flavor': {'description': 'Update description skill_china', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/100000', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/100000', 'rel': 'bookmark'}], 'ram': 1024, 'OS-FLV-DISABLED:disabled': False, 'os-flavor-access:is_public': True, 'rxtx_factor': 1.0, 'disk': 10, 'id': '100000', 'name': 'flavor_small', 'vcpus': 1, 'swap': '', 'OS-FLV-EXT-DATA:ephemeral': 0}}
2022-03-10 13:08:02,933 返回信息:{'flavor': {'description': 'Update description skill_china', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/flavors/100000', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/flavors/100000', 'rel': 'bookmark'}], 'ram': 1024, 'OS-FLV-DISABLED:disabled': False, 'os-flavor-access:is_public': True, 'rxtx_factor': 1.0, 'disk': 10, 'id': '100000', 'name': 'flavor_small', 'vcpus': 1, 'swap': '', 'OS-FLV-EXT-DATA:ephemeral': 0}}
Process finished with exit code 0

计算服务：云主机管理

接口说明

计算服务的API官网：
https://docs.openstack.org/api-guide/compute/index.html
Nova项目提供了RESTful HTTP服务：OpenStack Compute API。这些API提供了对计算资源的大规模可伸缩、随需应变、自服务访问能力。
API版本：
在Mitaka发布之后，每个Nova部署都应该有以下服务端点：

  • / -可用版本列表
  • /v2 -计算API的第一个版本，使用扩展（称之为计算API v2.0）
  • /v2.1 -相同的API，只是使用了微版本

文档只要给出v2.1 API接口说明。
以下以主机（servers）管理为案例，实现Python代码。具体APIs说明参见：
https://docs.openstack.org/api-ref/compute/

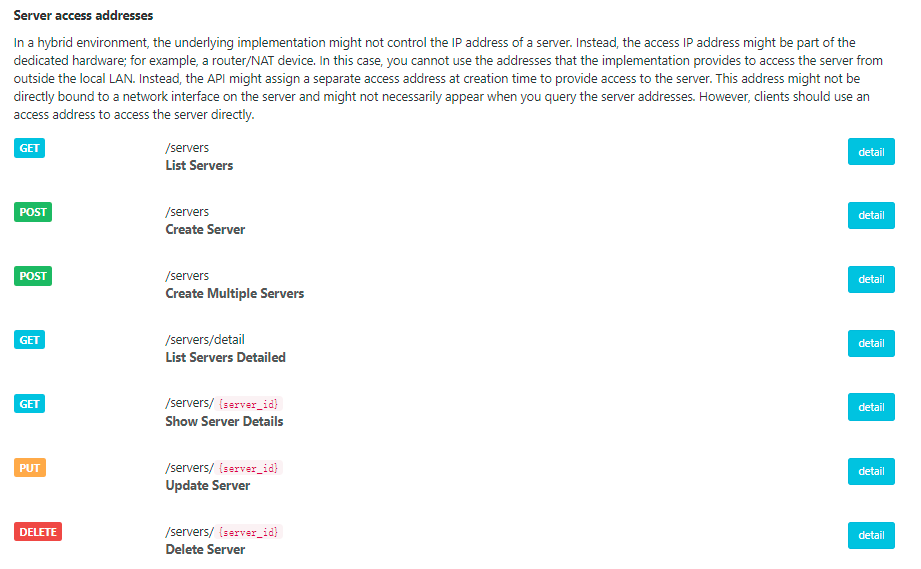

接口清单如图4所示，涉及查询（Get）、创建（POST）、更新（PUT）与删除（DELETE）。

76

图4
具体参看：https://docs.openstack.org/api-ref/compute/#servers-servers
创建主机接口说明：
创建servers使用接口：POST /servers。创建Server需要租户管理员权限，调用正常响应码为202，错误响应码为badRequest(400), unauthorized(401), forbidden(403), itemNotFound(404),conflict(409)。
请求（Request）说明（主要参数）见表5：
表5请求（Request）参数说明

名称 位置 类型 描述
server body object 云主机
flavorRef body string 云主机类型ID。
name body string 名称
networks body array 网络
networks.uuid (Optional) body string 网络UUID
networks.port (Optional) body string 网络端口
networks.fixed_ip (Optional) body string 固定IP

创建云主机的body json案例如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
{
    "server" : {
        "name" : "device-tagging-server",
        "imageRef": "70a599e0-31e7-49b7-b260-868f441e862b",
        "flavorRef" : "http://openstack.example.com/flavors/1",
        "networks" : [{
            "uuid" : "3cb9bc59-5699-4588-a4b1-b87f96708bc6",
            "tag": "nic1"
        }],
        "block_device_mapping_v2": [{
            "uuid": "70a599e0-31e7-49b7-b260-868f441e862b",
            "source_type": "image",
            "destination_type": "volume",
            "boot_index": 0,
            "volume_size": "1",
            "tag": "disk1"
        }]
    }
}

响应Response见表6：
表6 响应Response参数说明

名称 位置 类型 描述
flavor body object Flavor一种主机类型。
name body string 名称。
description body string 描述可选（限制65535字符），自V2.55版本开始。
id body string Flavor的ID，缺省为uuid。
ram body integer 内存大小（单位MiB）。
disk body integer 磁盘大小（单位GiB）。.
vcpus body integer 虚拟CPU个数(vCPUs)。
links body array 资源链接。
OS-FLV-EXT-DATA:ephemeral body integer 交换磁盘大小，单位为MiB。
OS-FLV-DISABLED:disabled (Optional) body boolean 是否禁用。通常只对管理用户可见。
swap body integer 交换磁盘大小，单位为MiB。
rxtx_factor body float 如果网络后端支持QOS扩展，将在端口上设置的接收/发送因子（作为一个浮动）。否则将被忽略。它的默认值是1.0。
os-flavor-access:is_public body boolean 主机类型是公用还是项目专有？默认公用。
extra_specs (Optional) body object 额外规格(key、value键值对)，自V2.61。

Example Create Flavor (v2.55)：

1
2
3
4
5
6
7
8
9
10
11
{
    "flavor": {
        "name": "test_flavor",
        "ram": 1024,
        "vcpus": 2,
        "disk": 10,
        "id": "10",
        "rxtx_factor": 2.0,
        "description": "test description"
    }
}

Example Create Flavor (v2.75)：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
    "flavor": {
        "OS-FLV-DISABLED:disabled": false,
        "disk": 10,
        "OS-FLV-EXT-DATA:ephemeral": 0,
        "os-flavor-access:is_public": true,
        "id": "10",
        "links": [
            {
                "href": "http://openstack.example.com/v2/6f70656e737461636b20342065766572/flavors/10",
                "rel": "self"
            },
            {
                "href": "http://openstack.example.com/6f70656e737461636b20342065766572/flavors/10",
                "rel": "bookmark"
            }
        ],
        "name": "test_flavor",
        "ram": 1024,
        "swap": 0,
        "rxtx_factor": 2.0,
        "vcpus": 2,
        "description": "test description",
        "extra_specs": {}
    }
}

代码实现

创建apis_server_manager.py文件实现，主机类型创建、查找、删除、更新。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
# Copyright 2021~2022 The Cloud Computing support Teams of ChinaSkills.

import requests, json, time
import logging

# -----------logger-----------
# get logger
logger = logging.getLogger(__name__)
# level
logger.setLevel(logging.DEBUG)
# format
format = logging.Formatter('%(asctime)s %(message)s')
# to console
stream_handler = logging.StreamHandler()
stream_handler.setFormatter(format)
logger.addHandler(stream_handler)

# -----------logger-----------

def get_auth_token(controller_ip, domain, user, password):
    '''
    :param controller_ip: openstack master ip address
    :param domain: current user's domain
    :param user: user name
    :param password: user password
    :return: keystoen auth Token for current user.
    '''

    try:
        url = f"http://{controller_ip}:5000/v3/auth/tokens"
        body = {
            "auth": {
                "identity": {
                    "methods": [
                        "password"
                    ],
                    "password": {
                        "user": {
                            "domain": {
                                "name": domain
                            },
                            "name": user,
                            "password": password
                        }
                    }
                },
                "scope": {
                    "project": {
                        "domain": {
                            "name": domain
                        },
                        "name": user
                    }
                }
            }
        }

        headers = {
            "Content-Type": "application/json",
        }
        print(body)
        Token = requests.post(url, data=json.dumps(body), headers=headers).headers['X-Subject-Token']

        headers = {
            "X-Auth-Token": Token
        }
        logger.debug(f"获取Token值：{str(Token)}")
        return headers
    except Exception as e:
        logger.error(f"获取Token值失败，请检查访问云主机控制节点IP是否正确？输出错误信息如下：{str(e)}")
        exit(0)

# 云主机管理
# https://docs.openstack.org/api-ref/compute/?expanded=#list-servers
class server_manager:
    def __init__(self, handers: dict, resUrl: str):
        self.headers = handers
        self.resUrl = resUrl

        #      POST  v2/servers

    def create_server(self, server_name: str, imageRef, flavorRef, networks_id):
        """
        :param server_name:
        :param container_format:
        :param disk_format:
        :return:
        """
        body = {
            "server": {
                "name": server_name,
                "flavorRef": flavorRef,
                "imageRef": imageRef,
                "networks": [{
                    "uuid": networks_id
                }],
            }
        }

        # 必须内容 name、flavorRef、networks、imageRef

        response = requests.post(self.resUrl, data=json.dumps(body), headers=self.headers)
        logger.debug(response.status_code)
        if response.status_code == 202:
            return {"serverItemCreatedSuccess": response.status_code}

        return response.text

    # 获取glance镜像id
    def get_server_id(self, server_name: str):
        result = json.loads(requests.get(self.resUrl, headers=self.headers).text)
        logger.debug(result)
        for item in result['servers']:
            if (item['name'] == server_name):
                return item['id']
        return ""
    # ----------------------------
    # /v2/servers
    # List servers
    def get_servers(self):
        """

        :return:
        """
        status_code = requests.get(self.resUrl, headers=self.headers).text
        logger.debug(f"返回状态:{str(status_code)}")
        return status_code

    # /v2/servers/{server_id} Show server

    def get_server(self, id: str):
        """
        get a flavor by id.
        :return:
        """
        api_url = self.resUrl + "/" + id
        response = requests.get(api_url, headers=self.headers)
        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result

    # /v2/servers/{server_id} Delete server
    def delete_server(self, id: str):
        """
         delete a user by id.
         :return:
         """
        api_url = self.resUrl + "/" + id
        response = requests.delete(api_url, headers=self.headers)

        # 204 - No Content	The server has fulfilled the request.
        if response.status_code == 204:
            return {"server itemDeletedSuccess": response.status_code}

        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result

        # http://192.168.200.226:8774/v2.1/ get apis version infomation.

if __name__ == '__main__':
    # openstack allinone （controller ) credentials
    # host ip address
    controller_ip = "192.168.200.226"
    # domain name
    domain = "demo"
    # user name
    user = "admin"
    # user password
    password = "000000"
    headers = get_auth_token(controller_ip, domain, user, password)
    print("headers:", headers)

代码验证

① 登录通过账号密码方式：使用get_auth_token()方法，通过该方法获取Token值。
② 封装了server_manager类，通过python request库实现对API的网络访问，实现对用户的增删查改操作。

  • 创建：POST v2.1/flavors
  • 查询：get v2.1/flavors
  • 删除：delete v2.1/flavors/id
  • 更改密码：put v2.1/flavors/id

具体可以通过官网的API说明。
③执行server_manager的每个方法进行代码测试，通过openstack server命令行或Dashboard界面进行研究者。
修改apis_server_manager.py的if name == ‘_main__’:函数中OpenStack的IP、domain、user、password，执行apis server _manager.py，进行查询所有、创建、根据ID查询、更新描述。

1
2
3
4
5
6
7
8
9
10
11
12
13
[root@controller ~]# openstack image list
+-------------------------------------+-----------+--------+
| ID                                  | Name      | Status |
+-------------------------------------+-----------+--------+
|d50222d2-f737-4b47-ba7c-38eaa2418ff0 | cirros    | active |
|038ba49b-ddee-4e0f-8ecb-6f64d2788138 | cirros002 | active |
+-------------------------------------+-----------+--------+
[root@controller ~]# openstack network list
+------------------------------------+------+--------------------------------------+
| ID                                 | Name | Subnets                              |
+------------------------------------+------+--------------------------------------+
|df62ea19-3e33-40bf-9f41-f2c5f343b3e7| net  | a16130c4-79c1-4ae8-9bc3-c167ee009d63 |
+------------------------------------+------+--------------------------------------+

在apis_ server manager.py的 __name_ == ‘main‘代码段最后添加如下代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
server_m = server_manager(headers, f"http://{controller_ip}:8774/v2.1/servers")
# 1 查所有
servers = server_m.get_servers()
print("查询所有servers:", servers)
print("-----------finished----------")
#2 创建
# 通过apis或openstack命令查询网络net1 ID、镜像 cirros ID、主机类型ID m1.tiny 1
imageRef = "8372926e-517a-4c69-8d24-01e972bbe4a2"
flavorRef = "1"
networks_id = "4bd2cb47-d3c4-48ed-afd9-4e4488677c5c"
networks_name = "net1"
result = server_m.create_server("server_001",imageRef, flavorRef,networks_id)
print(f"创建 云主机:", result)
#2 查询id
id = server_m.get_server_id(server_name="server_001")
print("server_001，id为: ", id)
#3 查一个云主机
result = server_m.get_server(id)
print(f"查询{id}云主机:", result)
# delete a 云主机
result = server_m.delete_server(id)
print(f"删除{id}镜像:", result)

然后执行apis_server_manager.py，结果如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@controller ~]# python3 apis_server_manager.py
{'auth': {'identity': {'methods': ['password'], 'password': {'user': {'domain': {'name': 'demo'}, 'name': 'admin', 'password': '000000'}}}, 'scope': {'project': {'domain': {'name': 'demo'}, 'name': 'admin'}}}}
2022-03-10 13:22:41,080 获取Token值：gAAAAABiKYmdnf1LDjTT0KSaK55jvsrnLWvwHEEXsIIppNx_WcVKliwp-xHnryAgPXBs-tg0fQSs8bwWG9GwFHbZxWqRrseRJUsAlmqbplkExmwOYFdJqnV-yMQp5tStc4fFnctB2jgF-lZS03V9l_0Uza84tFsH-JVhoiy6Hw5xCzm3sUHsNLM
headers: {'X-Auth-Token': 'gAAAAABiKYmdnf1LDjTT0KSaK55jvsrnLWvwHEEXsIIppNx_WcVKliwp-xHnryAgPXBs-tg0fQSs8bwWG9GwFHbZxWqRrseRJUsAlmqbplkExmwOYFdJqnV-yMQp5tStc4fFnctB2jgF-lZS03V9l_0Uza84tFsH-JVhoiy6Hw5xCzm3sUHsNLM'}
查询所有servers: {"servers": [{"id": "57b04243-d8fc-4f53-a6ae-3a7271bb920a", "links": [{"href": "http://172.128.11.18:8774/v2.1/servers/57b04243-d8fc-4f53-a6ae-3a7271bb920a", "rel": "self"}, {"href": "http://172.128.11.18:8774/servers/57b04243-d8fc-4f53-a6ae-3a7271bb920a", "rel": "bookmark"}], "name": "test"}]}
-----------finished----------
2022-03-10 13:22:41,827 返回状态:{"servers": [{"id": "57b04243-d8fc-4f53-a6ae-3a7271bb920a", "links": [{"href": "http://172.128.11.18:8774/v2.1/servers/57b04243-d8fc-4f53-a6ae-3a7271bb920a", "rel": "self"}, {"href": "http://172.128.11.18:8774/servers/57b04243-d8fc-4f53-a6ae-3a7271bb920a", "rel": "bookmark"}], "name": "test"}]}
2022-03-10 13:22:49,752 202
创建 云主机: {'serverItemCreatedSuccess': 202}
server_001，id为:  3c636f98-91ab-4b44-8de8-21ff04e56875
2022-03-10 13:22:50,895 {'servers': [{'id': '3c636f98-91ab-4b44-8de8-21ff04e56875', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/servers/3c636f98-91ab-4b44-8de8-21ff04e56875', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/servers/3c636f98-91ab-4b44-8de8-21ff04e56875', 'rel': 'bookmark'}], 'name': 'server_001'}, {'id': '57b04243-d8fc-4f53-a6ae-3a7271bb920a', 'links': [{'href': 'http://172.128.11.18:8774/v2.1/servers/57b04243-d8fc-4f53-a6ae-3a7271bb920a', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/servers/57b04243-d8fc-4f53-a6ae-3a7271bb920a', 'rel': 'bookmark'}], 'name': 'test'}]}
2022-03-10 13:22:52,828 返回信息:{'server': {'OS-EXT-STS:task_state': 'scheduling', 'addresses': {}, 'links': [{'href': 'http://172.128.11.18:8774/v2.1/servers/3c636f98-91ab-4b44-8de8-21ff04e56875', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/servers/3c636f98-91ab-4b44-8de8-21ff04e56875', 'rel': 'bookmark'}], 'image': {'id': 'd50222d2-f737-4b47-ba7c-38eaa2418ff0', 'links': [{'href': 'http://172.128.11.18:8774/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0', 'rel': 'bookmark'}]}, 'OS-EXT-STS:vm_state': 'building', 'OS-EXT-SRV-ATTR:instance_name': '', 'OS-SRV-USG:launched_at': None, 'flavor': {'id': '1', 'links': [{'href': 'http://172.128.11.18:8774/flavors/1', 'rel': 'bookmark'}]}, 'id': '3c636f98-91ab-4b44-8de8-21ff04e56875', 'user_id': '89f8027475294689ae6c0183fa35bf5a', 'OS-DCF:diskConfig': 'MANUAL', 'accessIPv4': '', 'accessIPv6': '', 'progress': 0, 'OS-EXT-STS:power_state': 0, 'OS-EXT-AZ:availability_zone': '', 'config_drive': '', 'status': 'BUILD', 'updated': '2022-03-10T05:16:23Z', 'hostId': '', 'OS-EXT-SRV-ATTR:host': None, 'OS-SRV-USG:terminated_at': None, 'key_name': None, 'OS-EXT-SRV-ATTR:hypervisor_hostname': None, 'name': 'server_001', 'created': '2022-03-10T05:16:22Z', 'tenant_id': '0b6f2d0be1d342e09edc31dc841db7a5', 'os-extended-volumes:volumes_attached': [], 'metadata': {}}}
查询3c636f98-91ab-4b44-8de8-21ff04e56875云主机: {'server': {'OS-EXT-STS:task_state': 'scheduling', 'addresses': {}, 'links': [{'href': 'http://172.128.11.18:8774/v2.1/servers/3c636f98-91ab-4b44-8de8-21ff04e56875', 'rel': 'self'}, {'href': 'http://172.128.11.18:8774/servers/3c636f98-91ab-4b44-8de8-21ff04e56875', 'rel': 'bookmark'}], 'image': {'id': 'd50222d2-f737-4b47-ba7c-38eaa2418ff0', 'links': [{'href': 'http://172.128.11.18:8774/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0', 'rel': 'bookmark'}]}, 'OS-EXT-STS:vm_state': 'building', 'OS-EXT-SRV-ATTR:instance_name': '', 'OS-SRV-USG:launched_at': None, 'flavor': {'id': '1', 'links': [{'href': 'http://172.128.11.18:8774/flavors/1', 'rel': 'bookmark'}]}, 'id': '3c636f98-91ab-4b44-8de8-21ff04e56875', 'user_id': '89f8027475294689ae6c0183fa35bf5a', 'OS-DCF:diskConfig': 'MANUAL', 'accessIPv4': '', 'accessIPv6': '', 'progress': 0, 'OS-EXT-STS:power_state': 0, 'OS-EXT-AZ:availability_zone': '', 'config_drive': '', 'status': 'BUILD', 'updated': '2022-03-10T05:16:23Z', 'hostId': '', 'OS-EXT-SRV-ATTR:host': None, 'OS-SRV-USG:terminated_at': None, 'key_name': None, 'OS-EXT-SRV-ATTR:hypervisor_hostname': None, 'name': 'server_001', 'created': '2022-03-10T05:16:22Z', 'tenant_id': '0b6f2d0be1d342e09edc31dc841db7a5', 'os-extended-volumes:volumes_attached': [], 'metadata': {}}}
Process finished with exit code 0

镜像管理代码

接口说明

镜像(glance)服务的API官网：
https://docs.openstack.org/api-ref/v2/index.html
Glance项目提供了RESTful HTTP服务：OpenStack Image Serivce API。
以下以镜像（images）管理为案例，实现Python代码。具体APIs接口清单如图5所示，涉及查询（Get）、创建（POST）、更新（PUT）与删除（DELETE）。

77

图5
具体参看：
https://docs.openstack.org/api-ref/compute/?expanded=list-images-detail
创建镜像接口说明：POST /v2/images
创建镜像调用正常响应码为201，错误响应码为400，401，403，409，413， 415。
请求（Request）说明见表7：
表7 请求（Request）说明

名称 位置 类型 描述
container_format (Optional) body enum 容器格式，如：ami，ari，aki，bare，ovf，ova，或docker。
disk_format (Optional) body enum 磁盘格式，如：ami，ari，aki，vhd，vhdx，vmdk，raw，qcow2，vdi，ploop或iso。
id (Optional) body string 镜像ID（UUID格式）。
min_disk (Optional) body integer 最小磁盘大小（GB单位）。
min_ram (Optional) body integer 最小内存大小（MB单位）。
name (Optional) body string 名称。
protected (Optional) body boolean 是否包含不被删除。
tags (Optional) body array 标签
visibility (Optional) body string 开放性（公开、私有、共享）。

请求案例代码如下：

1
2
3
4
5
6
{
    "container_format": "bare",
    "disk_format": "raw",
    "name": "Ubuntu",
    "id": "b2173dd3-7ad6-4362-baa6-a68bce3565cb"
}

响应信息见表8：
表8 响应信息

名称 位置 类型 描述
Location header string 镜像文件URL路径
OpenStack-image-import-methods (Optional) header string Import方法（自v2.6增加）。
OpenStack-image-store-ids (Optional) header string 后端存储ID。
checksum body string 检验Hash码。
container_format body enum 容器格式。
created_at body string 创建时间。
disk_format body enum 磁盘格式。
file body string 虚拟机镜像文件URL地址。
id body string 镜像ID（UUID格式）。
min_disk body integer 最小磁盘大小（GB单位）。
min_ram body integer 最小内存大小（MB单位）。
name body string 名称。
os_hash_algo body string 计算图像数据的安全哈希值的算法（自v2.7增加）。
os_hash_value body string 计算的图像数据的安全哈希的hexdigest（自v2.7增加）。
os_hidden body boolean 是否隐藏（自v2.7增加）。
owner body string 所有者的标识符。
protected body boolean 是否保护。
schema body string 描述虚拟机映像的schema URL。
self body string 虚拟机镜像的URL。
size body integer 镜像数据大学（bytes）。
status body string 状态
tags body array 标签
updated_at body string 更新日期。
virtual_size body integer 虚拟大小
visibility body string 开放性（公开、私有、共享）。
direct_url (Optional) body string 访问保存在外部存储中的映像文件URL。
locations (Optional) body array 地址。

响应（Response）案例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
{
    "status": "queued",
    "name": "Ubuntu",
    "tags": [],
    "container_format": "bare",
    "created_at": "2015-11-29T22:21:42Z",
    "size": null,
    "disk_format": "raw",
    "updated_at": "2015-11-29T22:21:42Z",
    "visibility": "private",
    "locations": [],
    "self": "/v2/images/b2173dd3-7ad6-4362-baa6-a68bce3565cb",
    "min_disk": 0,
    "protected": false,
    "id": "b2173dd3-7ad6-4362-baa6-a68bce3565cb",
    "file": "/v2/images/b2173dd3-7ad6-4362-baa6-a68bce3565cb/file",
    "checksum": null,
    "os_hash_algo": null,
    "os_hash_value": null,
    "os_hidden": false,
    "owner": "bab7d5c60cd041a0a36f7c4b6e1dd978",
    "virtual_size": null,
    "min_ram": 0,
    "schema": "/v2/schemas/image"
}

其他接口的参数创建相似，可以查看具体APIs说明

代码实现

创建apis_image_manager.py文件实现，主机类型创建、查找、删除、更新。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
# Copyright 2021~2022 The Cloud Computing support Teams of ChinaSkills.
import requests, json, time
import logging
# -----------logger-----------
# get logger
logger = logging.getLogger(__name__)
# level
logger.setLevel(logging.DEBUG)
# format
format = logging.Formatter('%(asctime)s %(message)s')
# to console
stream_handler = logging.StreamHandler()
stream_handler.setFormatter(format)
logger.addHandler(stream_handler)
# -----------logger-----------
def get_auth_token(controller_ip, domain, user, password):
    '''
    :param controller_ip: openstack master ip address
    :param domain: current user's domain
    :param user: user name
    :param password: user password
    :return: keystoen auth Token for current user.
    '''
    try:
        url = f"http://{controller_ip}:5000/v3/auth/tokens"
        body = {
            "auth": {
                "identity": {
                    "methods": [
                        "password"
                    ],
                    "password": {
                        "user": {
                            "domain": {
                                "name": domain
                            },
                            "name": user,
                            "password": password
                        }
                    }
                },
                "scope": {
                    "project": {
                        "domain": {
                            "name": domain
                        },
                        "name": user
                    }
                }
            }
        }
        headers = {
            "Content-Type": "application/json",
        }
        print(body)
        Token = requests.post(url, data=json.dumps(body), headers=headers).headers['X-Subject-Token']
        headers = {
            "X-Auth-Token": Token
        }
        logger.debug(f"获取Token值：{str(Token)}")
        return headers
    except Exception as e:
        logger.error(f"获取Token值失败，请检查访问云主机控制节点IP是否正确？输出错误信息如下：{str(e)}")
        exit(0)
# 镜像管理
class image_manager:
    def __init__(self, handers: dict, resUrl: str):
        self.headers = handers
        self.resUrl = resUrl
    #POST  v2/images
    def create_image(self, image_name: str, container_format="bare", disk_format="qcow2"):
        """
        :param image_name:
        :param container_format:
        :param disk_format:
        :return:
        """
        body = {
            "container_format": container_format,
            "disk_format": disk_format,
            "name": image_name
        }
        response = requests.post(self.resUrl, data=json.dumps(body), headers=self.headers)
        logger.debug(response.status_code)
        if response.status_code == 201:
            return {"ImageItemCreatedSuccess": response.status_code}
        return response.text
    # 获取glance镜像id
    def get_image_id(self, image_name: str):
        result = json.loads(requests.get(self.resUrl, headers=self.headers).text)
        logger.debug(result)
        for item in result['images']:
            if (item['name'] == image_name):
                return item['id']
    # 上传glance镜像
    # Image data¶ Uploads and downloads raw image data.
    # These operations may be restricted to administrators. Consult your cloud operator’s documentation for details.
    # /v2/images/{image_id}/file
    # 镜像可以重名
    def upload_iamge_data(self, image_id: str, file_path=""):
        """
        :param image_id:
        :param file_path:
        :return:
        """
        self.resUrl = self.resUrl + "/" + image_id + "/file"
        self.headers['Content-Type'] = "application/octet-stream"
        response = requests.put(self.resUrl, data=open(file_path, 'rb').read(), headers=self.headers)
        logger.debug(response.status_code)
        if response.status_code == 204:
            return {"ImageItemCreatedSuccess": response.status_code}
        return response.text
    # ----------------------------
    # /v2/images
    # List images
    def get_images(self):
        """
        :return:
        """
        status_code = requests.get(self.resUrl, headers=self.headers).text
        logger.debug(f"返回状态:{str(status_code)}")
        return status_code
    # /v2/images/{image_id} Show image
    def get_image(self, id: str):
        """
        get a flavor by id.
        :return:
        """
        api_url = self.resUrl + "/" + id
        response = requests.get(api_url, headers=self.headers)
        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result
    # /v2/images/{image_id} Delete image
    def delete_image(self, id: str):
        """
         delete a image by id.
         :return:
         """
        api_url = self.resUrl + "/" + id
        response = requests.delete(api_url, headers=self.headers)
        # 204 - No ContentThe server has fulfilled the request.
        if response.status_code == 204:
            return {"Image itemDeletedSuccess": response.status_code}
        result = json.loads(response.text)
        logger.debug(f"返回信息:{str(result)}")
        return result
        # http://192.168.200.226:8774/v2.1/ get apis version infomation.
if __name__ == '__main__':
    # openstack allinone （controller ) credentials
    # host ip address
    controller_ip = "192.168.200.226"
    # domain name
    domain = "demo"
    # user name
    user = "admin"
    # user password
    password = "000000"
    headers = get_auth_token(controller_ip, domain, user, password)
    print("headers:", headers)

代码验证

① 登录通过账号密码方式：使用get_auth_token()方法，通过该方法获取Token值。
② 封装了image_manager类，通过python request库实现对API的网络访问，实现对用户的增删查改操作。

  • 创建：post v2/images
  • 查询：get v2/images
  • 删除：delete v2/images/id
  • 更改密码：put v2/images/id

具体可以通过官网的API说明。
执行image_manager的每个方法进行代码测试，通过openstack image命令行或Dashboard界面进行研究者。
修改apis_image_manager.py的if name == ‘__main__’:函数中OpenStack的IP、domain、user、password，执行apis_image_manager.py，进行查询所有、创建、根据ID查询、更新描述。在apis_image_manager.py的 name == ‘main‘代码段最后添加如下代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#  http://controller:9292
    image_m = image_manager(headers, f"http://{controller_ip}:9292/v2/images")
    # 1 查所有
    images = image_m.get_images()
    print("查询所有images:", images)
    #2 创建镜像（注意，镜像允许同名）
    result = image_m.create_image(image_name="cirros002")  # 调用glance-api中创建镜像方法
    print(f"创建cirros002 镜像:", result)
    #    #1.1查询id
    id = image_m.get_image_id(image_name="cirros002")
    print("cirros002镜像的，id为: ", id)
    # 1.2 上传镜像文件
    result = image_m.upload_iamge_data(id, file_path="cirros-0.3.4-x86_64-disk.img")
    print(f"上传{id}镜像:", result)

然后执行apis_image_manager.py，结果如下：

1
2
3
4
5
6
7
8
9
10
11
[root@controller ~]# python3 apis_image_manager.py
{'auth': {'identity': {'methods': ['password'], 'password': {'user': {'domain': {'name': 'demo'}, 'name': 'admin', 'password': '000000'}}}, 'scope': {'project': {'domain': {'name': 'demo'}, 'name': 'admin'}}}}
headers: {'X-Auth-Token': 'gAAAAABiKYbUS0SDwZzUhzjEuBFQmqWjRxrtCqcdmEpPvEt29dbwRWfjj_GLaLhqiErU0qsfNQN5leEMS788SshaSGFXKwScCAumH22lB2INMbVm9hV4Gn2OnZjkvM0PsJ-DVoIK136QIS6FwZPVI93Xqujawpkw5762db9nI9Gmd3wOxZWDBqs'}
2022-03-10 13:10:48,187 获取Token值：gAAAAABiKYbUS0SDwZzUhzjEuBFQmqWjRxrtCqcdmEpPvEt29dbwRWfjj_GLaLhqiErU0qsfNQN5leEMS788SshaSGFXKwScCAumH22lB2INMbVm9hV4Gn2OnZjkvM0PsJ-DVoIK136QIS6FwZPVI93Xqujawpkw5762db9nI9Gmd3wOxZWDBqs
2022-03-10 13:10:48,803 返回状态:{"images": [{"container_format": "bare", "min_ram": 0, "updated_at": "2022-03-10T00:56:57Z", "file": "/v2/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0/file", "owner": "0b6f2d0be1d342e09edc31dc841db7a5", "id": "d50222d2-f737-4b47-ba7c-38eaa2418ff0", "size": 13287936, "self": "/v2/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0", "disk_format": "qcow2", "os_hash_algo": "sha512", "schema": "/v2/schemas/image", "status": "active", "tags": [], "visibility": "shared", "min_disk": 0, "virtual_size": null, "name": "cirros", "checksum": "ee1eca47dc88f4879d8a229cc70a07c6", "created_at": "2022-03-10T00:56:56Z", "os_hidden": false, "protected": false, "os_hash_value": "1b03ca1bc3fafe448b90583c12f367949f8b0e665685979d95b004e48574b953316799e23240f4f739d1b5eb4c4ca24d38fdc6f4f9d8247a2bc64db25d6bbdb2"}], "schema": "/v2/schemas/images", "first": "/v2/images"}
查询所有images: {"images": [{"container_format": "bare", "min_ram": 0, "updated_at": "2022-03-10T00:56:57Z", "file": "/v2/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0/file", "owner": "0b6f2d0be1d342e09edc31dc841db7a5", "id": "d50222d2-f737-4b47-ba7c-38eaa2418ff0", "size": 13287936, "self": "/v2/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0", "disk_format": "qcow2", "os_hash_algo": "sha512", "schema": "/v2/schemas/image", "status": "active", "tags": [], "visibility": "shared", "min_disk": 0, "virtual_size": null, "name": "cirros", "checksum": "ee1eca47dc88f4879d8a229cc70a07c6", "created_at": "2022-03-10T00:56:56Z", "os_hidden": false, "protected": false, "os_hash_value": "1b03ca1bc3fafe448b90583c12f367949f8b0e665685979d95b004e48574b953316799e23240f4f739d1b5eb4c4ca24d38fdc6f4f9d8247a2bc64db25d6bbdb2"}], "schema": "/v2/schemas/images", "first": "/v2/images"}
创建cirros002 镜像: {'ImageItemCreatedSuccess': 201}
2022-03-10 13:10:49,569 201
2022-03-10 13:10:50,145 {'images': [{'container_format': 'bare', 'min_ram': 0, 'updated_at': '2022-03-10T05:04:21Z', 'file': '/v2/images/038ba49b-ddee-4e0f-8ecb-6f64d2788138/file', 'owner': '0b6f2d0be1d342e09edc31dc841db7a5', 'id': '038ba49b-ddee-4e0f-8ecb-6f64d2788138', 'size': None, 'self': '/v2/images/038ba49b-ddee-4e0f-8ecb-6f64d2788138', 'disk_format': 'qcow2', 'os_hash_algo': None, 'schema': '/v2/schemas/image', 'status': 'queued', 'tags': [], 'visibility': 'shared', 'min_disk': 0, 'virtual_size': None, 'name': 'cirros002', 'checksum': None, 'created_at': '2022-03-10T05:04:21Z', 'os_hidden': False, 'protected': False, 'os_hash_value': None}, {'container_format': 'bare', 'min_ram': 0, 'updated_at': '2022-03-10T00:56:57Z', 'file': '/v2/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0/file', 'owner': '0b6f2d0be1d342e09edc31dc841db7a5', 'id': 'd50222d2-f737-4b47-ba7c-38eaa2418ff0', 'size': 13287936, 'self': '/v2/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0', 'disk_format': 'qcow2', 'os_hash_algo': 'sha512', 'schema': '/v2/schemas/image', 'status': 'active', 'tags': [], 'visibility': 'shared', 'min_disk': 0, 'virtual_size': None, 'name': 'cirros', 'checksum': 'ee1eca47dc88f4879d8a229cc70a07c6', 'created_at': '2022-03-10T00:56:56Z', 'os_hidden': False, 'protected': False, 'os_hash_value': '1b03ca1bc3fafe448b90583c12f367949f8b0e665685979d95b004e48574b953316799e23240f4f739d1b5eb4c4ca24d38fdc6f4f9d8247a2bc64db25d6bbdb2'}], 'schema': '/v2/schemas/images', 'first': '/v2/images'}
cirros002镜像的，id为:  038ba49b-ddee-4e0f-8ecb-6f64d2788138
上传038ba49b-ddee-4e0f-8ecb-6f64d2788138镜像: {'ImageItemCreatedSuccess': 204}

镜像上传需要一定时间，上传后再查询与删除。替换上面输出的ID，最后再添加如下代码：

1
2
3
4
5
6
7
id = "038ba49b-ddee-4e0f-8ecb-6f64d2788138"
  result = image_m.get_image(id)
  print(f"查询{id}镜像:", result)

  # 4. delete a user
  result = image_m.delete_image(id)
  print(f"删除{id}镜像:", result)

删除或注释以下代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
# 1 查所有
   images = image_m.get_images()
   print("查询所有images:", images)

   #2 创建镜像（注意，镜像允许同名）
   result = image_m.create_image(image_name="cirros002")  # 调用glance-api中创建镜像方法
   print(f"创建cirros002 镜像:", result)
   #    #1.1查询id
   id = image_m.get_image_id(image_name="cirros002")
   print("cirros002镜像的，id为: ", id)
   # 1.2 上传镜像文件
   result = image_m.upload_iamge_data(id, file_path="cirros-0.3.4-x86_64-disk.img")
   print(f"上传{id}镜像:", result)

然后执行apis_image_manager.py，结果如下：

1
2
3
4
5
6
7
[root@controller ~]# python3 apis_image_manager.py
{'auth': {'identity': {'methods': ['password'], 'password': {'user': {'domain': {'name': 'demo'}, 'name': 'admin', 'password': '000000'}}}, 'scope': {'project': {'domain': {'name': 'demo'}, 'name': 'admin'}}}}
2022-03-10 13:14:29,986 获取Token值：gAAAAABiKYeyF3CRflZXsarjvfvtkGs86paQe4PeWG6n2I25gjIhyQ8rUdjmDZAWZme0V2meKwIA_-hEEfTObPpo-Zggq0nvIdyzhRau-6H0uhpZx1awr3O3HLsoj8QOtOS0NhIBFed-QAPpCw3uduh_HwSVJ-Se7axa1Mq26cAFyUSKVakxJsg
headers: {'X-Auth-Token': 'gAAAAABiKYeyF3CRflZXsarjvfvtkGs86paQe4PeWG6n2I25gjIhyQ8rUdjmDZAWZme0V2meKwIA_-hEEfTObPpo-Zggq0nvIdyzhRau-6H0uhpZx1awr3O3HLsoj8QOtOS0NhIBFed-QAPpCw3uduh_HwSVJ-Se7axa1Mq26cAFyUSKVakxJsg'}
2022-03-10 13:14:30,462 返回信息:{'container_format': 'bare', 'min_ram': 0, 'updated_at': '2022-03-10T05:04:25Z', 'file': '/v2/images/038ba49b-ddee-4e0f-8ecb-6f64d2788138/file', 'owner': '0b6f2d0be1d342e09edc31dc841db7a5', 'id': '038ba49b-ddee-4e0f-8ecb-6f64d2788138', 'size': 13287936, 'self': '/v2/images/038ba49b-ddee-4e0f-8ecb-6f64d2788138', 'disk_format': 'qcow2', 'os_hash_algo': 'sha512', 'schema': '/v2/schemas/image', 'status': 'active', 'tags': [], 'visibility': 'shared', 'min_disk': 0, 'virtual_size': None, 'name': 'cirros002', 'checksum': 'ee1eca47dc88f4879d8a229cc70a07c6', 'created_at': '2022-03-10T05:04:21Z', 'os_hidden': False, 'protected': False, 'os_hash_value': '1b03ca1bc3fafe448b90583c12f367949f8b0e665685979d95b004e48574b953316799e23240f4f739d1b5eb4c4ca24d38fdc6f4f9d8247a2bc64db25d6bbdb2'}
查询038ba49b-ddee-4e0f-8ecb-6f64d2788138镜像: {'container_format': 'bare', 'min_ram': 0, 'updated_at': '2022-03-10T05:04:25Z', 'file': '/v2/images/038ba49b-ddee-4e0f-8ecb-6f64d2788138/file', 'owner': '0b6f2d0be1d342e09edc31dc841db7a5', 'id': '038ba49b-ddee-4e0f-8ecb-6f64d2788138', 'size': 13287936, 'self': '/v2/images/038ba49b-ddee-4e0f-8ecb-6f64d2788138', 'disk_format': 'qcow2', 'os_hash_algo': 'sha512', 'schema': '/v2/schemas/image', 'status': 'active', 'tags': [], 'visibility': 'shared', 'min_disk': 0, 'virtual_size': None, 'name': 'cirros002', 'checksum': 'ee1eca47dc88f4879d8a229cc70a07c6', 'created_at': '2022-03-10T05:04:21Z', 'os_hidden': False, 'protected': False, 'os_hash_value': '1b03ca1bc3fafe448b90583c12f367949f8b0e665685979d95b004e48574b953316799e23240f4f739d1b5eb4c4ca24d38fdc6f4f9d8247a2bc64db25d6bbdb2'}
-----------finished----------

案例三：通过OpenStack SDK编写Python运维

任务目标

了解使用OpenStack Python SDK进行Python运维脚本开发 。
了解用户、镜像、实例类型等运维管理代码的编写案例。

案例准备

沿用案例一的all-in-one云主机环境进行实验。

案例实施

OpenStack Python SDK官方文档参见：
https://docs.openstack.org/openstacksdk/latest/user/index.html。
通过OpenStack Python SDK可以编写自动化Python脚本，用于创建和管理Openstack云环境中的资源。SDK实现了Python绑定OpenStack API，这能够让你使用Python实现自动化任务通过调用Python对象，而不用直接调用REST接口。
源代码地址为：https://github.com/openstack/openstacksdk。提供完整源代码及examples案例代码。如图6所示：

78
图6
Python的OpenStack模块下每种资源提供一个对应的模块实现。安装 OpenStack SDK：

1
$ pip install openstacksdk

查找认证的Endpoint地址：

1
keystone     | identity       | True    | internal  | http://controller:5000/v3/

执行以下代码的机器，需要配置hostname：controller IP。

用户认证

前面通过调用Restful APIs封装用户、主机、镜像等管理类，由于调用SDK非常简单，这里采用一个模块sdk_manager来统一实现。
认证方式：采用账户名密码方式，通过openstack. connect()建立连接。
用户管理：通过openstack. connect.identity模块实现。
新建sdk_manager_identity.py，用户查询与项目项目代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
import json,logging
import openstack
#openstack logger
# openstack.enable_logging(debug=True)
#文档地址
# https://docs.openstack.org/openstacksdk/latest/user/index.html
def create_connection(auth_url, user_domain_name, username, password):
    """
    建立连接
    :param auth_url:
    :param user_domain_name:
    :param username:
    :param password:
    :return:
    """
    return openstack.connect(
        auth_url=auth_url,
        user_domain_name=user_domain_name,
        username=username,
        password=password,
    )
#user Manager
# 参见文档
# https://docs.openstack.org/openstacksdk/latest/user/guides/identity.html
#openstack.connection.Connection
class user_manager:
    def __init__(self, connect:openstack.connection.Connection):
        self.connect = connect
    def list_users(self):
        """
        get User Resource.list object.
        :return:
        """
        users = self.connect.identity.users()
        #to json
        user_jsons = {}
        for user in users:
            user_jsons[user['name']] = user
        return json.dumps(user_jsons,indent=2)
    def list_projects(self):
        """
        :return:
        """
        projects = self.connect.identity.projects()
        # to json
        projects_jsons = {}
        for item in projects:
            projects_jsons[item['name']] = item
        return json.dumps(projects_jsons, indent=2)
    def list_domains(self):
        """
        :return:
        """
        items = self.connect.identity.domains()
        # to json
        items_jsons = {}
        for item in items:
            items_jsons[item['name']] = item
        return json.dumps(items_jsons, indent=2)
if __name__ == '__main__':
    # Initialize connection(通过配置文件）
    auth_url = "http://172.128.11.18:5000/v3/"
    username = "admin"
    password = "000000"
    user_domain_name = 'demo'
    conn = create_connection(auth_url, user_domain_name, username, password)
    #查用户
    print("-------users-------")
    user_m = user_manager(conn)
    result = user_m.list_users()
    print(result)
    # 查项目
    print("-------projects-------")
    result = user_m.list_projects()
    print(result)
    # 查域
    print("-------domains-------")
    result = user_m.list_domains()
    print(result)

以上代码分别通过create_connection、user_manager实现建立连接、用户与项目的查询，__main__方法提供测试代码，可以逐个方法进行测试验证。相关的执行结果，可以通过命令行或dashboard界面进行验证。
执行sdk_manager_identity.py，结果如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
[root@controller ~]# python3 sdk_manager_identity.py
{'auth_url': 'http://172.128.11.18:5000/v3/', 'user_domain_name': 'demo', 'username': 'admin', 'password': '000000'}
-------users-------
{
  "admin": {
    "default_project_id": "0b6f2d0be1d342e09edc31dc841db7a5",
    "description": null,
    "domain_id": "720f960530dc4e1982ebc7bdfd261f86",
    "email": null,
    "is_enabled": true,
    "links": {
      "self": "http://172.128.11.18:5000/v3/users/89f8027475294689ae6c0183fa35bf5a"
    },
    "name": "admin",
    "password": null,
    "password_expires_at": null,
    "id": "89f8027475294689ae6c0183fa35bf5a",
    "name": "admin",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  },
  ......
  }
}
-------projects-------
{
  "admin": {
    "description": "Admin Project",
    "domain_id": "720f960530dc4e1982ebc7bdfd261f86",
    "is_domain": false,
    "is_enabled": true,
    "name": "admin",
    "options": {},
    "parent_id": "720f960530dc4e1982ebc7bdfd261f86",
    "id": "0b6f2d0be1d342e09edc31dc841db7a5",
    "name": "admin",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    },
    "tags": []
  },
  "demo": {
    "description": "Demo Project",
    "domain_id": "720f960530dc4e1982ebc7bdfd261f86",
    "is_domain": false,
    "is_enabled": true,
    "name": "demo",
    "options": {},
    "parent_id": "720f960530dc4e1982ebc7bdfd261f86",
    "id": "32bb0b4849bc405a82aed64b7c0072fe",
    "name": "demo",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    },
    "tags": []
  },
  "service": {
    "description": "Service Project",
    "domain_id": "720f960530dc4e1982ebc7bdfd261f86",
    "is_domain": false,
    "is_enabled": true,
    "name": "service",
    "options": {},
    "parent_id": "720f960530dc4e1982ebc7bdfd261f86",
    "id": "b47586b9fe8845c0b65ac944616cb934",
    "name": "service",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    },
    "tags": []
  }
}
-------domains-------
{
  "demo": {
    "description": "Default Domain",
    "is_enabled": true,
    "name": "demo",
    "links": {
      "self": "http://172.128.11.18:5000/v3/domains/720f960530dc4e1982ebc7bdfd261f86"
    },
    "id": "720f960530dc4e1982ebc7bdfd261f86",
    "name": "demo",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  },
  "Default": {
    "description": "The default domain",
    "is_enabled": true,
    "name": "Default",
    "links": {
      "self": "http://172.128.11.18:5000/v3/domains/default"
    },
    "id": "default",
    "name": "Default",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  },
  "heat": {
    "description": "Stack projects and users",
    "is_enabled": true,
    "name": "heat",
    "links": {
      "self": "http://172.128.11.18:5000/v3/domains/e62a73d6033d49e89a0fd711a87f7d7b"
    },
    "id": "e62a73d6033d49e89a0fd711a87f7d7b",
    "name": "heat",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  }
}
Process finished with exit code 0

官网提供了查询User、Project、Domain资源的Python案例，资源的封装通过代理模式实现，参考类如下：

1
2
3
4
5
6
class IdentityService(service_description.ServiceDescription):
    """The identity service."""
    supported_versions = {
        '2': _proxy_v2.Proxy,
        '3': _proxy_v3.Proxy,
    }

思考一下如何通过SDK创建与更新资源。

计算资源案例

计算资源前面通过调用Restful APIs封装主机、镜像等管理类，在模块增加主机、镜像、主机类型、网络的管理实现。
主机管理：通过openstack. connect.compute模块实现。
镜像、主机类型、网络：也通过openstack. connect.compute模块实现。另外openstack.connect.image、openstack.connect.network也实现镜像与网络操作。
在sdk_manager_compute.py下增加如下代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
import json,logging
import openstack
#openstack logger
# openstack.enable_logging(debug=True)
#文档地址
# https://docs.openstack.org/openstacksdk/latest/user/index.html
def create_connection(auth_url, user_domain_name, username, password):
    """
    建立连接
    :param auth_url:
    :param user_domain_name:
    :param username:
    :param password:
    :return:
    """
    return openstack.connect(
        auth_url=auth_url,
        user_domain_name=user_domain_name,
        username=username,
        password=password,
    )
#user Manager
# 参见文档
# https://docs.openstack.org/openstacksdk/latest/user/guides/identity.html
#openstack.connection.Connection
#云主机管理
class server_manager:
    def __init__(self, connect):
        self.connect = connect
    def list_servers(self):
        """
        查询所有云主机.
        :return:
        """
        #to json
        items = self.connect.compute.servers()
        server_jsons = {}
        for server in items:
            server_jsons[server['name']] = server
        # return ""
        return items# json.dumps(server_jsons,indent=2,skipkeys=True)
    def create_server(self, server_name, image_name, flavor_name,networ_name):
        """
        create a server.
        :param server_name:
        :param image_name:
        :param flavor_name:
        :param networ_name:
        :return:
        """
        image = self.connect.compute.find_image(image_name)
        flavor = self.connect.compute.find_flavor(flavor_name)
        network = self.connect.network.find_network(networ_name)
        server = self.connect.compute.create_server(
            name=server_name, image_id=image.id, flavor_id=flavor.id,
            networks=[{"uuid": network.id}])
        result = self.connect.compute.wait_for_server(server)
        return result #json.dumps(result,indent=2,skipkeys=True)
    def delete_server(self, server_name):
        """
        删除云主机
        :param server_name:
        :return:
        """
        server = self.connect.compute.find_server(server_name)
        result = self.connect.compute.delete_server(server)
        return result #json.dumps(result, indent=2, skipkeys=True)
    def get_server(self, server_name):
        """
        获取云主机
        :param server_name:
        :return:
        """
        server = self.connect.compute.find_server(server_name)
        return json.dumps(server, indent=2, skipkeys=True)
class image_manager:
    def __init__(self, connect):
        self.connect = connect
    def list_images(self):
        """
        查询所有镜像
        :return:
        """
        #to json
        items = self.connect.compute.images()
        images_jsons = {}
        for image in items:
            images_jsons[image['name']] = image
        return json.dumps(images_jsons,indent=2)
    def get_image(self, image_name:str):
        """
        查询镜像
        :return:
        """
        #to json
        image = self.connect.compute.find_image(image_name)
        return json.dumps(image,indent=2)
class flavor_manager:
    def __init__(self, connect):
        self.connect = connect
    def list_flavors(self):
        """
        查询所有云主机类型
        :return:
        """
        #to json
        items = self.connect.compute.flavors()
        flavors_jsons = {}
        for flavor in items:
            flavors_jsons[flavor['name']] = flavor
        return json.dumps(flavors_jsons,indent=2)
    def get_flavor(self, flavor_name:str):
        """
        根据名称获取云主机类.
        :return:
        """
        #to json
        flavor = self.connect.compute.find_flavor(flavor_name)
        return json.dumps(flavor,indent=2)
class network_manager:
    def __init__(self, connect):
        self.connect = connect
    def list_networks(self):
        """
        查询所有网络.
        :return:
        """
        #to json
        items = self.connect.network.networks()
        items_jsons = {}
        for network in items:
            items_jsons[network['name']] = network
        return json.dumps(items_jsons,indent=2)
    def get_network(self, network_name:str):
        """
        跟名称查询网络.
        :return:
        """
        #to json
        flavor = self.connect.compute.find_network(network_name)
        return json.dumps(flavor,indent=2)
if __name__ == '__main__':
    # Initialize connection(通过配置文件）
    auth_url = "http://172.128.11.18:5000/v3/"
    username = "admin"
    password = "000000"
    user_domain_name = 'demo'
    conn = create_connection(auth_url, user_domain_name, username, password)
    # 1 查询flavors
    print("list flavors--------")
    sdk_m = flavor_manager(conn)
    flavors = sdk_m.list_flavors()
    print("flavors:", flavors)
    # 2 镜像管理
    sdk_m = image_manager(conn)
    items = sdk_m.list_images()
    print("image:", items)
    # 3 网络管理
    print("list networks--------")
    sdk_m = network_manager(conn)
    networks = sdk_m.list_networks()
    print("networks:", networks)
    #4 查询 云主机
    sdk_m = server_manager(conn)
    servers = sdk_m.list_servers()
    print("servers:", servers)
    #5 创建云主机
    print("creat server--------")
    servers = sdk_m.create_server("test_song","cirros","m1.tiny","net")
    print("servers:", servers)
    #6 删除云主机
    result = sdk_m.delete_server("test_song")
    print("servers:", result)

以上代码分别通过user_manager、server_manager、image_manager、flavor_manager、network_manager实现镜像、云主机、镜像、主机类型、网络的增删除改。每种资源的操作都提供对应的方法直接操作，非常简单，其他资源或方法可以通过源码或帮助文件进行操作。
__main__方法提供测试代码，可以逐个方法进行测试验证。相关的执行结果，可以通过命令行或Dashboard界面进行验证。
执行结果如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
[root@controller ~]# python3 sdk_manager_compute.py
{'auth_url': 'http://172.128.11.18:5000/v3/', 'user_domain_name': 'demo', 'username': 'admin', 'password': '000000'}
list flavors--------
flavors: {
  "m1.tiny": {
    "links": [
      {
        "href": "http://controller:8774/v2.1/flavors/1",
        "rel": "self"
      },
      {
        "href": "http://controller:8774/flavors/1",
        "rel": "bookmark"
      }
    ],
    "name": "m1.tiny",
    "description": null,
    "disk": 10,
    "is_public": true,
    "ram": 512,
    "vcpus": 1,
    "swap": "",
    "ephemeral": 0,
    "is_disabled": false,
    "rxtx_factor": 1.0,
    "extra_specs": {},
    "id": "1",
    "name": "m1.tiny",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  },
  "flavor_small": {
    "links": [
      {
        "href": "http://controller:8774/v2.1/flavors/100000",
        "rel": "self"
      },
      {
        "href": "http://controller:8774/flavors/100000",
        "rel": "bookmark"
      }
    ],
    "name": "flavor_small",
    "description": "Update description skill_china",
    "disk": 10,
    "is_public": true,
    "ram": 1024,
    "vcpus": 1,
    "swap": "",
    "ephemeral": 0,
    "is_disabled": false,
    "rxtx_factor": 1.0,
    "extra_specs": {},
    "id": "100000",
    "name": "flavor_small",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  },
  "m1.small": {
    "links": [
      {
        "href": "http://controller:8774/v2.1/flavors/2",
        "rel": "self"
      },
      {
        "href": "http://controller:8774/flavors/2",
        "rel": "bookmark"
      }
    ],
    "name": "m1.small",
    "description": null,
    "disk": 20,
    "is_public": true,
    "ram": 1024,
    "vcpus": 1,
    "swap": "",
    "ephemeral": 0,
    "is_disabled": false,
    "rxtx_factor": 1.0,
    "extra_specs": {},
    "id": "2",
    "name": "m1.small",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  },
  "m1.medium": {
    "links": [
      {
        "href": "http://controller:8774/v2.1/flavors/3",
        "rel": "self"
      },
      {
        "href": "http://controller:8774/flavors/3",
        "rel": "bookmark"
      }
    ],
    "name": "m1.medium",
    "description": null,
    "disk": 40,
    "is_public": true,
    "ram": 2048,
    "vcpus": 2,
    "swap": "",
    "ephemeral": 0,
    "is_disabled": false,
    "rxtx_factor": 1.0,
    "extra_specs": {},
    "id": "3",
    "name": "m1.medium",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  }
}
image: {
  "cirros": {
    "links": [
      {
        "href": "http://controller:8774/v2.1/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0",
        "rel": "self"
      },
      {
        "href": "http://controller:8774/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0",
        "rel": "bookmark"
      },
      {
        "href": "http://controller:9292/images/d50222d2-f737-4b47-ba7c-38eaa2418ff0",
        "type": "application/vnd.openstack.image",
        "rel": "alternate"
      }
    ],
    "name": "cirros",
    "created_at": "2022-03-10T00:56:56Z",
    "metadata": {},
    "min_disk": 0,
    "min_ram": 0,
    "progress": 100,
    "status": "ACTIVE",
    "updated_at": "2022-03-10T00:56:57Z",
    "size": 13287936,
    "id": "d50222d2-f737-4b47-ba7c-38eaa2418ff0",
    "name": "cirros",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    }
  }
}
list networks--------
networks: {
  "net": {
    "availability_zone_hints": [],
    "availability_zones": [
      "nova"
    ],
    "created_at": "2022-03-10T01:21:52Z",
    "description": "",
    "dns_domain": null,
    "ipv4_address_scope_id": null,
    "ipv6_address_scope_id": null,
    "is_admin_state_up": true,
    "is_default": null,
    "is_port_security_enabled": true,
    "is_router_external": false,
    "is_shared": false,
    "mtu": 1450,
    "name": "net",
    "project_id": "0b6f2d0be1d342e09edc31dc841db7a5",
    "provider_network_type": "vxlan",
    "provider_physical_network": null,
    "provider_segmentation_id": 12,
    "qos_policy_id": null,
    "segments": null,
    "status": "ACTIVE",
    "subnet_ids": [
      "a16130c4-79c1-4ae8-9bc3-c167ee009d63"
    ],
    "updated_at": "2022-03-10T01:21:53Z",
    "is_vlan_transparent": null,
    "revision_number": 2,
    "id": "df62ea19-3e33-40bf-9f41-f2c5f343b3e7",
    "name": "net",
    "location": {
      "cloud": "defaults",
      "region_name": "",
      "zone": null,
      "project": {
        "id": "0b6f2d0be1d342e09edc31dc841db7a5",
        "name": null,
        "domain_id": null,
        "domain_name": null
      }
    },
    "tags": []
  }
}
servers:
creat server--------
servers: openstack.compute.v2.server.Server(name=test_song, imageRef=d50222d2-f737-4b47-ba7c-38eaa2418ff0, flavorRef=1, networks=[{'uuid': 'df62ea19-3e33-40bf-9f41-f2c5f343b3e7'}], security_groups=[{'name': 'default'}], OS-DCF:diskConfig=MANUAL, id=25554b93-65b2-472b-9bc0-344c4f405a50, links=[{'href':

计算资源或其他资源的Python调用类似，可以查看接口进行测试。
